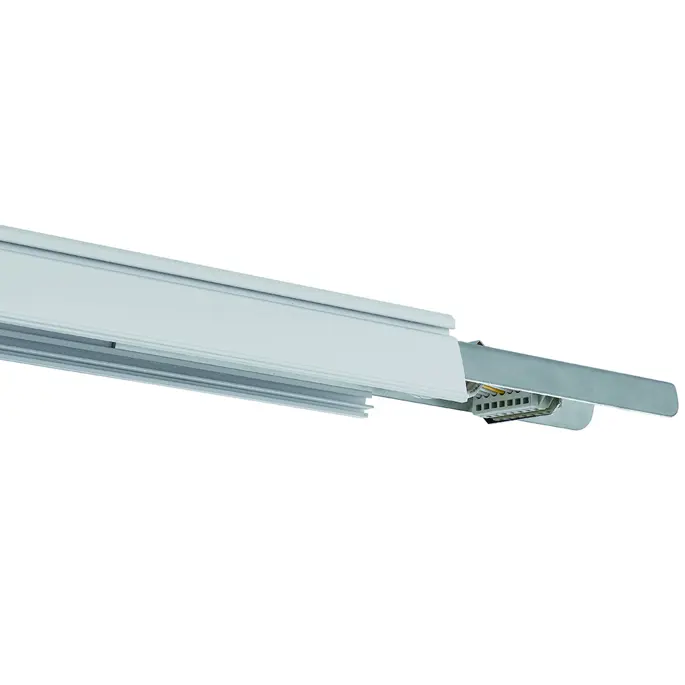

Rail System Pre-wired Support Profile

Rail System structure component

  • Male-female plug-in system with steel interlocking and installed through-wiring. Available in various lengths: 600, 1500, 3000 mm.
  • Mounted before the other elements, it forms the load-bearing structure of the system.
  • Continuous row installation.
  • Equipped with a quick connection system for extremely fast installation.
Rail System structure component

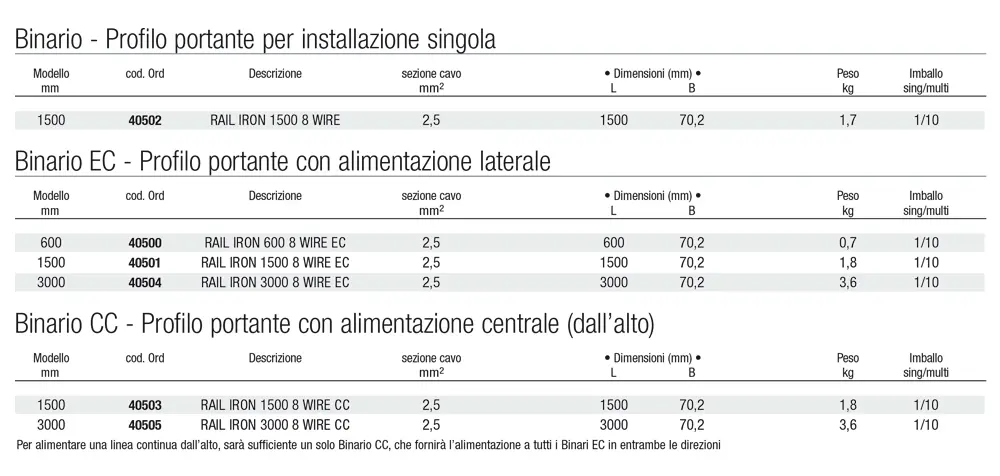

Specifications
Rail System structure component Rail System structure component

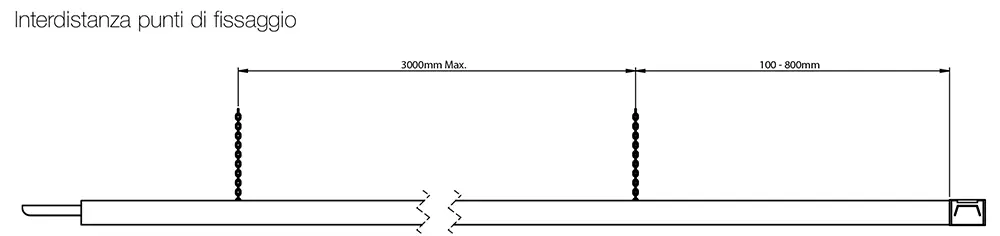

Installazione - Installations
