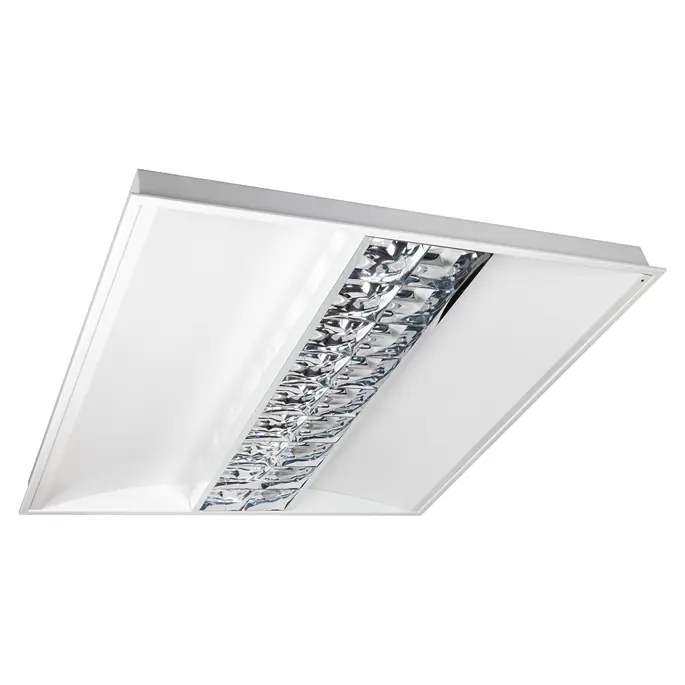

I418 LED

LED technology, efficiency and comfort

The maximum performance for LED lighting in the tertiary sector. The structural simplicity of I418 LED is conceived for use in offices or modern and essential workplaces.
This combination of simplicity and solidity reveals its elegance in the most performing diffuser in its category, designed with direct and indirect emission to obtain a “soft light” effect, appreciably increasing comfort in the environment.



Discover the Beghelli Smart Driver control system and the Opticom Technology system

Versions
SD
Plus
Also for ceiling installation
Installations
Ceiling , Recessed
Body
polyester powder coated sheet steel RAL 9003
Optic
Dark Light
Power supply
SELV electronic SD (cos j = 0.96) Electronic with intelligent dimming
Equivalent power (W)
4x18
Light source
LED
Compliance
EN 60598-1, EN 60598-2-1, EN 60598-2-22 (fundamental requirements), EN62471 (photobiological hazard)
Degree of protection
IP20, IP54
UGR (<)
19
Room temperature
-20°+40°C
Colour temperature (K)
4000
Voltage (V)
230
Energy class
A++
RA (>)
80
Fixtures with LED light source
Optical technology for control and direct programming of fixtures
Appliance suitable for installations in schools, hospitals, office buildings, industrial facilities
Apparatus with class II insulation level.
Degree of protection against external factors
Degree of protection against external factors
Fixture can be interfaced with SmartDriver System
Fixture complies with the European Community directives
Indicates temperature resistance of the product, as verified using the glow wire test
Available in: EU
Specifications
LED technology, efficiency and comfort

Recessed fixture for mounting in an exposed structure, slats and plasterboard. Also for CEILING mounting with an adaptor. Characterized by excellent Dark Light anti-glare control, its use is particularly indicated in all workplaces with video terminals where employees are exposed to artificial light for long periods. The exact emission of light on the work surface gives precision to the beam of light, the indirect emission that is reflected on the side reflectors considerably increases comfort thanks to an overall result of soft light.
Additional accessories are available for integrating emergency lighting: the LED Inverter for lighting up part of the fixture in the event of a black-out, or the LED Module for inserting in the seat provided.

Details
Emergenza - Emergency
Con inverter LED/ Autoripara.
Inverter LED / Autoripara.
Con inverter EcoLED/Modulo LED da ordinare separatamente.
With inverter ECOLED / LED module to be ordered separately.

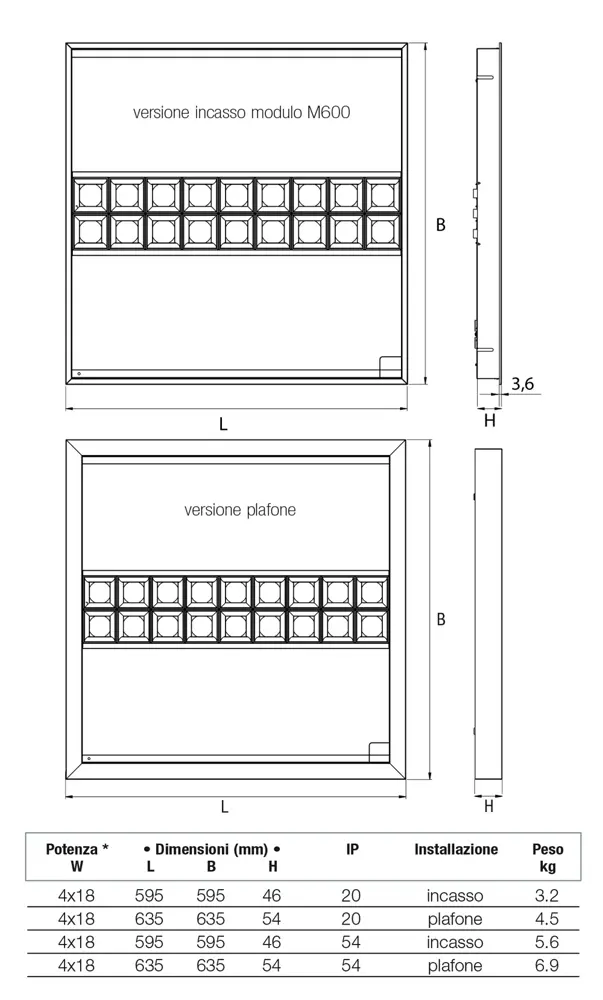

Installazione - Installations
Incasso su modulo 600.
Built on Form 600.
Versione IP54
IP54 version
A plafone
Ceiling
Incasso su cartongesso/doghe.
Built on plasterboard / slats.
