Order code 71052
EAN 8002219722713
Technical specifications
Absorbed Power
10 W
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
II
CCT light tone
3000 K
Beam angle
100 °
Colour consistency
SDCM3
CRI color rendering
>80

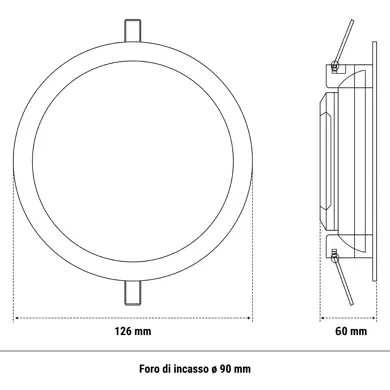

Diameter
120 mm
Ballast
For constant current LED
Efficiency
90 lm/W
Frequency (max)
60 Hz
Frequency (min)
50 Hz
Power factor
0.55
Glow wire strength
650 °C - 30s.
Luminaire flux
900 lm
Luminous flux L70B10
43000 h
Luminous flux L70B50
60000 h
Luminous flux L80B10
27000 h
Luminous flux L80B20
30000 h
Luminous flux L80B50
37200 h
Luminous flux L90B10
15000 h
Luminous flux L90B50
17700 h
Voltage supply range (max)
253 V
Voltage supply range (min)
207 V
Installation and applications
Environment
Offices
Application
Offices, Shops
Mechanical specifications
Height
60 mm
Weight
0.15 Kg
Colour housing
White
Protection grade IP
IP40/IP42
Protection grade IK
IK05
Certifications and norms
UK SI 2021 No. 1095, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61547:2009, EN 62471:2008, EN IEC 60598-1:2021, EN 60598-2-2:2012, EN IEC 63000:2018, EN 62493:2010, EN 61000-3-3:2013
