Order code 136SD
EAN 8002219730008
Technical specifications
Absorbed Power
23 W
Supply voltage type
AC/DC
Nominal voltage (AC)
230 Vac
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
I
CCT light tone
4000 K
LED number
144
Out current (Qty max)
390
Photobiological risk
RG0
Colour consistency
SDCM3
Colour reflector
White
CRI color rendering
>80
Driver type
SD X
Ballast
Constant current LED Smart driver (programmable)
Efficiency
143 lm/W
Energy class
D
Equivalent power
1x36w
Frequency (max)
60 Hz
Frequency (min)
50 Hz
Power factor
0.97
Glow wire strength
850 °C - 30s.
HACCP
Yes
Inrush current
28 A
Inrush time
0.15
Luminaire flux
3300 lm
Luminous flux L70B10
171000 h
Luminous flux L70B50
239000 h
Luminous flux L80B10
108000 h
Luminous flux L80B20
120000 h
Luminous flux L80B50
148800 h
Luminous flux L90B10
60000 h
Luminous flux L90B50
70800 h
Mounting
Ceiling
Nominal voltage (DC)
216 Vdc
Breaker B16 (Qty max)
20
Breaker C16 (Qty max)
29
Voltage supply range (DC)
150÷250 VOLT
Voltage supply range (max)
265 V
Voltage supply range (min)
93 V
Installation and applications
Environment
Secondary Areas
Application
Industrial Areas, Production, Warehouses

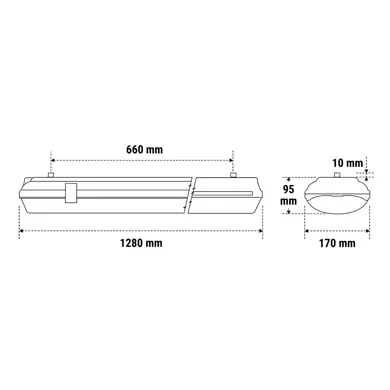

Mechanical specifications
Height
95 mm
Length
1280 mm
Width
170 mm
Weight
2.3 Kg
Body material
Polycarbonate
Colour housing
Grey RAL 7040
Cover material
Transparent Photoengraved Polycarbonate
Diffuser finiture
Opale
Reflector material
Sheet steel
Protection grade IP
IP65
Protection grade IK
IK05
Certifications and norms
UK SI 2021 No. 1095, EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61547:2009, EN 62471:2008, EN IEC 60598-1:2021, EN 60598-2-1:1989, EN IEC 63000:2018, EN 62493:2010, EN 61000-3-3:2013
