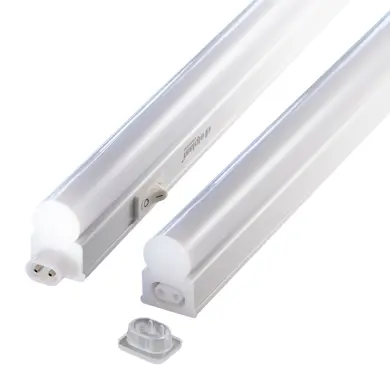

Reglette LED 10 Watt, white light under-cabinet lamp
Order code 74045
EAN 8002219713384
Technical specifications
Absorbed Power
10 W
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C
Insulation class
II
CCT light tone
4000 K
Colour consistency
SDCM3
CRI color rendering
>80
Ballast
For constant current LED
Efficiency
100 lm/W
Frequency (max)
60 Hz
Frequency (min)
50 Hz
Glow wire strength
850 °C - 30s.
Luminaire flux
1000 lm
Luminous flux L70B10
71000 h
Luminous flux L70B50
100000 h
Luminous flux L80B10
45000 h
Luminous flux L80B20
50000 h
Luminous flux L80B50
62000 h
Luminous flux L90B10
25000 h
Luminous flux L90B50
29500 h
Voltage supply range (max)
253 V
Voltage supply range (min)
207 V
Installation and applications
Environment
Offices
Application
Shelves, Shops

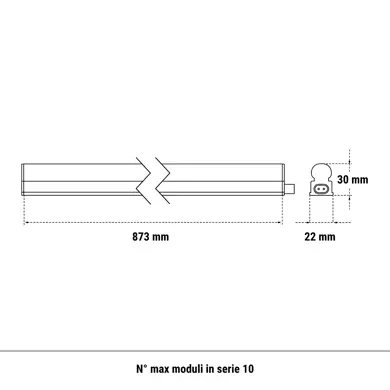

Mechanical specifications
Height
30 mm
Length
873 mm
Width
22 mm
Weight
0.21 Kg
Colour housing
White
Protection grade IP
IP40
Protection grade IK
IK05
Certifications and norms
UK SI 2021 No. 1095, EN 62471:2008, EN IEC 60598-1:2021, EN 60598-2-1:1989, EN IEC 63000:2018, EN 62493:2010, EN 61000-3-3:2013, REG. 2019/2020(EU), EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019
