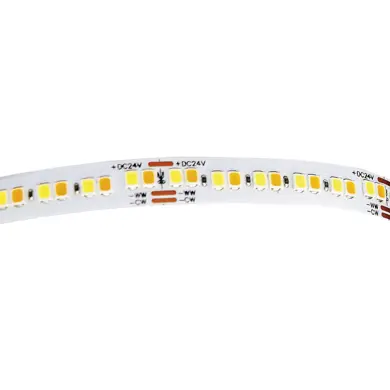

StripLED CCT 24V
Order code 56643
EAN 8002219878304
Technical specifications
Absorbed Power
22 W
Supply voltage type
DC
Ambient temperature (min)
-20 °C
Ambient temperature (max)
45 °C
CCT light tone
4000 K
CCT (max)
6000 K
CCT (min)
2700 K
LED number
240
LED number/meter
240.00
Photobiological risk
RG0
Watt/meter
22 W/m
Beam angle
120 °
Colour consistency
SDCM6
Consumption (1000h)
22 KWh
CRI color rendering
>80
Dimmable
Yes
Efficiency
111.8 lm/W
Energy class
F
Eprel code
713972
Power factor
1
Life
30000 h
Lighting Sources Flux
2460 lm
Meter flux
2460 lm/m
Luminous flux L70B50
50000 h
Nominal voltage (DC)
24 Vdc
Mechanical specifications
Height
3 mm
Length
5000 mm
Width
10 mm
Strip cut length
50 mm
Protection grade IP
IP65
Certifications and norms
-, EN 62471:2008, EN 60598-2-20:2015 + AC:2017-01, EN IEC 60598-1:2021, EN 300 328 V2.2.2, EN IEC 63000:2018, EN 62493:2010, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 61000-3-3:2013
