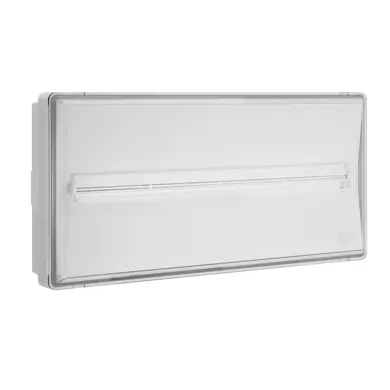

Innovative emergency luminaire with integrated Modula junction bracket that allows programming and wiring without dismantling the luminaire.
Control system TR
Order code 18610
EAN 8002219886545
Technical specifications
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Absorbed SE (max)
3.5 W
Control system
TR
Autonomy
1h, 1.5h, 2h, 3h
Battery included
Yes
Battery type
LiFe
Battery
LiFe 3.2V 1.5Ah
Charging time
12 h
Ambient temperature (min)
0 °C
Ambient temperature (max)
50 °C
Insulation class
II
CCT light tone
4000 K
LED number
36
Photobiological risk
RG0
Booster battery
RA11f
Colour reflector
White RAL 9003
Colour trim
White RAL 9003
Operation mode
NM
Equivalent power
24WGL
Flux SE booster
450 lm, 300 lm, 250 lm, 170 lm
Flux SE
300 lm, 200 lm, 165 lm, 110 lm
Frequency (max)
60 Hz
Frequency (min)
50 Hz
Power factor
0.41
Glow wire strength
850 °C - 30s.
Mounting
Wall, Ceiling, Recessed, False Ceiling Recessed, Suspension, Track & Rail, Surface/Suspended, Electrified rail, Flush mounting box 3M
Nunber of Batteries
1
Rest mode
Yes
Visibility distance
21 m
Voltage supply range (max)
253 V
Voltage supply range (min)
207 V
Installation and applications
Environment
Secondary Areas
Application
Offices, Building Entrances, Escape Routes, Condos, Hotels, Stores, Schools, Malls, Safety Sign, Public Areas

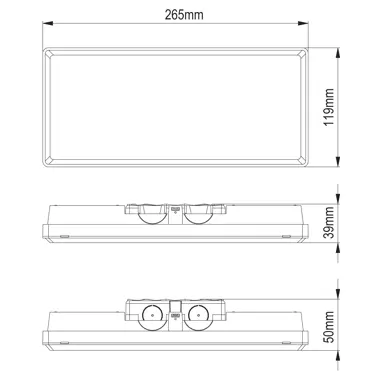

Mechanical specifications
Height
38 mm
Length
265 mm
Width
119 mm
Weight
0.55 Kg
Cutout length
300 mm
Cutout wide
120 mm
Body material
Polycarbonate
Colour housing
White RAL 9003
Cover material
Transparent polycarbonate
Lens material
Methacrylate
Reflector material
Polycarbonate
Protection grade IP
IP42
Protection grade IK
IK07
Certifications and norms
UK SI 2021 No. 1095, EN 62471:2008, EN IEC 60598-1:2021, EN 60598-2-2:2012, EN 60598-2-22:2014 + AC:2015 + AC:2016-05 + AC:2016-09 + A1:2020, EN IEC 63000:2018, EN 62493:2010, EN 61000-3-3:2013, REG. 2019/2020(EU), EN IEC 55015:2019 + A11:2020
