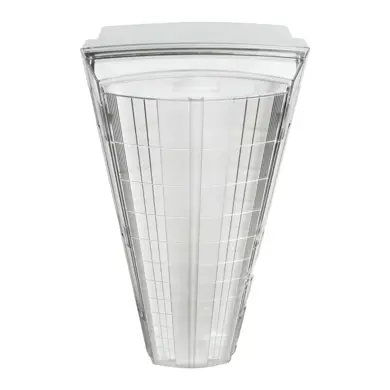

Emergency luminaire with high luminous flux for installations in large commercial and industrial areas.
Control system TR
Order code 8594
EAN 8002219732880
Technical specifications
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Absorbed SE (max)
1.7 W
Control system
TR
Autonomy
3h, 6h
Battery included
Yes
Battery type
LiFe
Battery
LiFe 3.2V 3Ah
Charging time
12 h
Ambient temperature (min)
0 °C
Ambient temperature (max)
40 °C
Insulation class
II
CCT light tone
4000 K
LED number
16
Photobiological risk
RG0
CRI color rendering
>80
Operation mode
NM
Equivalent power
18W
Flux SE
400 lm, 260 lm
Frequency (max)
60 Hz
Frequency (min)
50 Hz
Power factor
0.07
Glow wire strength
850 °C - 30s.
Nunber of Batteries
1
Visibility distance
28 m
Voltage supply range (max)
253 V
Voltage supply range (min)
207 V
Installation and applications
Environment
Offices
Application
Offices, Industrial Areas, Public Areas

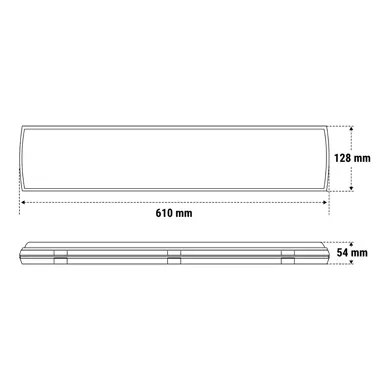

Mechanical specifications
Height
54 mm
Length
610 mm
Width
128 mm
Weight
1.8 Kg
Body material
Polycarbonate
Colour housing
White RAL 9003
Cover material
Transparent polycarbonate
Diffuser finiture
Clear
Reflector material
Polycarbonate
Protection grade IP
IP42
Protection grade IK
IK05
Certifications and norms
UK SI 2021 No. 1095, EN 62471:2008, EN IEC 60598-1:2021, EN 60598-2-22:2014 + AC:2015 + AC:2016-05 + AC:2016-09 + A1:2020, EN IEC 63000:2018, EN 62493:2010, EN 61000-3-3:2013, REG. 2019/2020(EU), EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019
