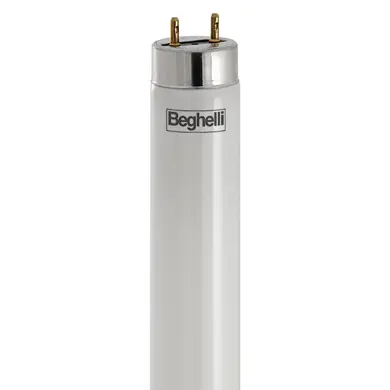

This T8 tube is the ideal product for quickly and economically converting fluorescent tube luminaires to the new LED technology. With a small technical intervention you will thus have extremely energy-saving luminaires.
Order code 56233
EAN 8002219736512
Technical specifications
Absorbed Power
18 W
Lampholder
G13
Supply voltage type
AC
Nominal voltage (AC)
230 Vac
Ambient temperature (min)
-20 °C
Ambient temperature (max)
40 °C

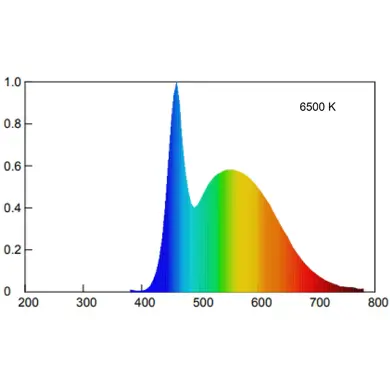

CCT light tone
6500 K
Photobiological risk
RG0
Beam angle
180 °
Bulb shape
Other
Colour consistency
SDCM6
Consumption (1000h)
18 KWh
CRI color rendering
>80
Diameter
28 mm
Efficiency
105 lm/W
Energy class
F
Eprel code
562925
Equivalent power
36W
Frequency (max)
60 Hz
Frequency (min)
50 Hz
Power factor
0.51
Life
15000 h
Lighting Sources Flux
1900 lm
Luminous flux L70B50
15000 h
Switching cycles
8000
Voltage supply range (max)
240 V
Voltage supply range (min)
220 V
Mechanical specifications
Length
1212 mm
Diffuser finiture
Frosted
Protection grade IP
IP20
Certifications and norms
UK SI 2021 No. 1095, EN 62471:2008, EN 62776:2015, EN IEC 63000:2018, EN 62493:2010, EN 61000-3-3:2013, REG. 2019/2020(EU), EN IEC 55015:2019 + A11:2020, EN IEC 61000-3-2 :2019, EN 61547:2009
