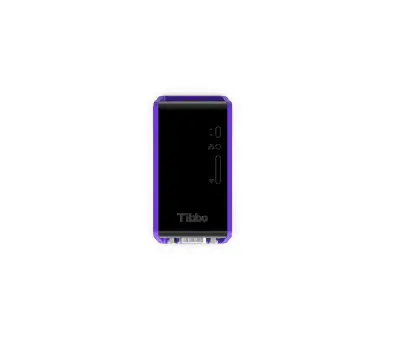

RS485/Ethernet interface
Accessories
Module for communication with central test devices over network with choice of 10 Mbit/s (10BaseT) or 100 Mbit/s (100BaseT). Is required, if a second network connection is desired per test device or if several test devices are connected over RS485 and should be monitored and controlled on a common network connection. The compatibility of the test device with the chosen software resp. cloud must be considered - see catalogue page for software resp. cloud.
| TECHNICAL DATA - GENERAL | |
|---|---|
| Scope of delivery: |
1 x mains adaptor, 1 x mounting adaptor for DIN rail,
1 x adaptor plug (DE-9 <> plug terminals)
|
| Housing: |
Plastic
|
| Dimensions (H x W x D): | 90 x 48 x 25 mm |
| Type of protection: | IP20 |
| Protection class: | II |
| Mounting: | DIN rail or surface wall mounting |
| Compatible test devices: |
Logica S Connect (12100C)
Logica Z (12131C)
Logica FM (21102)
|
