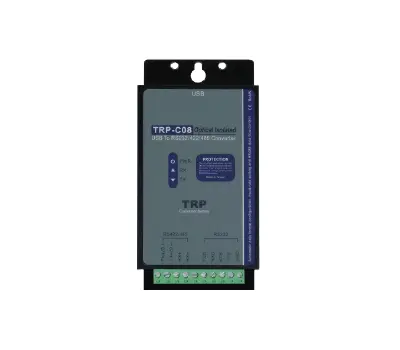

RS485/USB interface
Accessories
Module for communication with central test devices over USB. The compatibility of the test device with the chosen software must be considered - see catalogue page for software.
| TECHNICAL DATA - GENERAL | |
|---|---|
| Scope of delivery: |
1x mounting adaptor for DIN rail, 1x USB cable
|
| Housing: |
Metal
|
| Dimensions (H x W x D): | 151 x 75 x 26 mm |
| Type of protection: | IP20 |
| Protection class: | III |
| Mounting: | DIN rail or surface wall mounting |
| Compatible test devices: |
Logica S Connect (12100C)
Logica Z (12131C)
Logica FM (21102)
NGB
Sicuro24
NZB
Sicuro230
|
