Tula

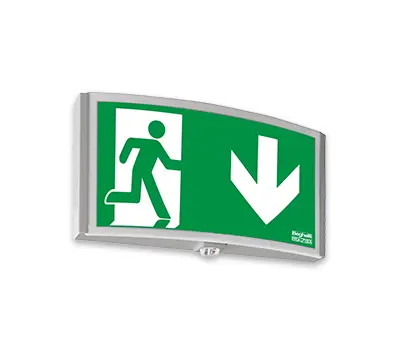

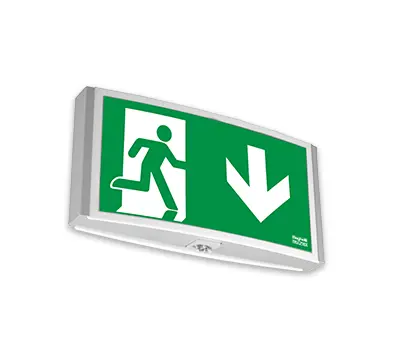

Combined escape sign & safety luminaire
Combined escape sign and safety luminaire or escape sign luminaire. Housing in flat design with convex light outlet area and opal pane. 1- or 2-sided escape route indication through self-adhesive foils. Additional high-power LED with light guidance through special lenses for asymmetrical light distribution (illumination of escape routes with 1 lx) or for symmetrical light distribution (illumination of areas with 0.5 lx) for combined escape sign and safety luminaire.
Versions for surface wall mounting and with additional accessories for pendulum and bracket
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Sheet steel, grey (RAL 9006)
|
| Cover: |
PMMA, opal
|
| Foil: | PVC, printed |
| Lens: | PMMA, transparent |
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 4.000 K (ESL & SL) |
| Color rendering index: |
80 (ESL)
70 (SL)
|
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: |
I
|
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
| Battery supply (alt.): | 90 V – 276 V |
