Sign LED
Combined safety sign & safety luminaire

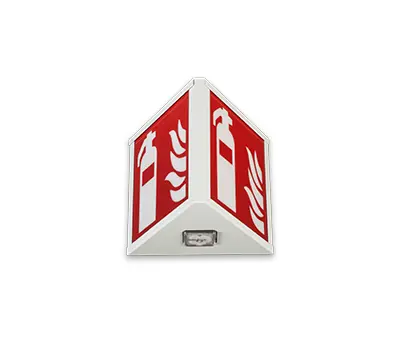

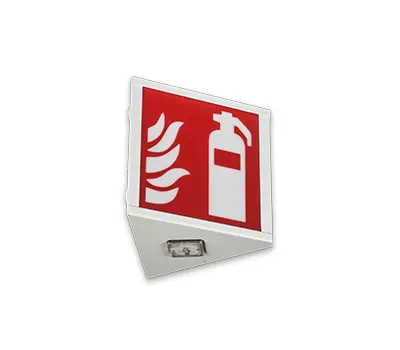

Combined safety sign and safety luminaire. Housing made of flat sheet steel profiles with angular contours in triangular shape. 2-sided indication of safety devices through exchangeable safety sign panes. Illumination of safety devices with 5 lx through high-power LED with light guidance through special lens.
Version for surface wall mounting
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Sheet steel, white (RAL 9003)
|
| Display pane: |
PMMA, printed
|
| Lens: | PMMA, transparent |
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: |
6.500 K (SSL)
4.000 K (SL)
|
| Color rendering index: | 70 (SSL & SL) |
| Optic interface: | LIFE |
| Commissioning: | For Autotest, operating duration, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained or non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | I |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | I |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
| Battery supply (alt.): | 90 V – 276 V |
