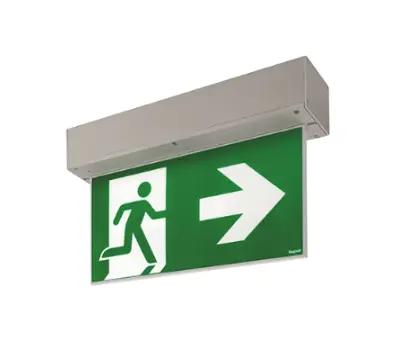

Iron Flag 65
Escape sign luminaire
Escape sign luminaire with high type of protection in angular design. Very robust housing made of unpainted aluminium and universal display pane made of polycarbonate. Easy to install. 1- or 2-sided escape route indication through exchangeable escape sign foils. Generous connection chamber for the internal wiring.
Versions for surface wall and ceiling mounting and bracket
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Aluminium, anodized, grey
|
| Display pane: |
Polycarbonate (display pane)
Polycarbonate (foil, printed)
|
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 4.000 K |
| Color rendering index: | 80 |
| Optic interface: | LIFE |
| Commissioning: | For Autotest, operating duration, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | I |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | I |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
| Battery supply (alt.): | 90 V – 276 V |
