Piana LED

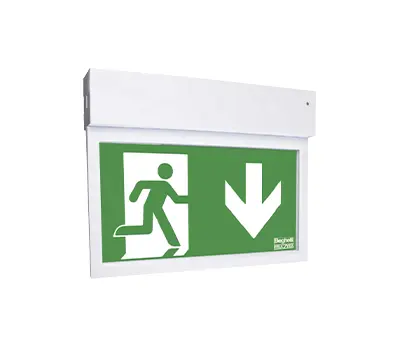

Escape sign luminaire
Escape sign luminaire with angular housing, frame display and light guide panel. 1- or 2-sided escape route indication through exchangeable escape sign foils.
Versions for surface wall and ceiling mounting and wire pendulum and with additional accessories for recessed ceiling mounting
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
ABS, white (RAL 9003)
|
| Frame: | ABS, white (RAL 9003) |
| Display pane: |
PMMA (display pane)
Polycarbonate (foil, printed)
|
| Service life L80B50: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 5.700 K |
| Color rendering index: | 80 |
| Optic interface: | LIFE |
| Commissioning: | For Autotest, operating duration, operating mode PS, monitoring group and test duration are only programmable per app B.connect over smartphone locally on luminaire. |
| TECHNICAL DATA - SELF-CONTAINED SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Switching: | Maintained and non-maintained |
| Ambient temperature: |
0 °C to +40 °C
|
| Protection class: | II |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | II |
| Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
| Battery supply (alt.): | 90 V – 276 V |
