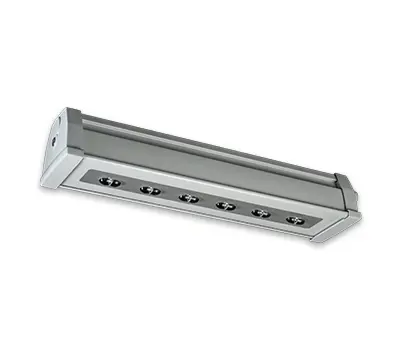

Acciaio High
Safety luminaire
High type of protection and high impact resistance. Housing made of sheet steel with caps made of diecast aluminium. High-power LEDs with light guidance through special lenses for asymmetrical shining light distribution with extreme large luminaire distances of > 100 m at heights of 2.5 to 20 m, f. i. in tunnels or halls (illumination of escape routes with 1 lx). Extremely resistant against mechanical and chemical stress.
Versions for surface wall and ceiling mounting and chain/wire, additional accessory: swivelable wall holder
| TECHNICAL DATA - GENERAL | |
|---|---|
| Housing: |
Sheet steel, grey (RAL 7035)
|
| Caps: |
Diecast aluminium, grey (RAL 7035)
|
| Lenses: | PMMA, transparent |
| Service life L80B20: | 50.000 h |
| Color stability: | 3 SDCM |
| Color temperature: | 5.700 K |
| Color rendering index: | 80 |
| TECHNICAL DATA - DECENTRAL SUPPLY | |
|---|---|
| Mains supply: |
24 V +/- 20 % DC
|
| Battery supply: | 24 V +/- 20 % DC |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: | III |
| TECHNICAL DATA - CENTRAL SUPPLY | |
|---|---|
| Mains supply: |
198 V – 254 V / 50 Hz
|
| Battery supply: | 176 V – 276 V |
| Ambient temperature: |
-20 °C to + 40 °C
|
| Protection class: |
I
|
Specifications
