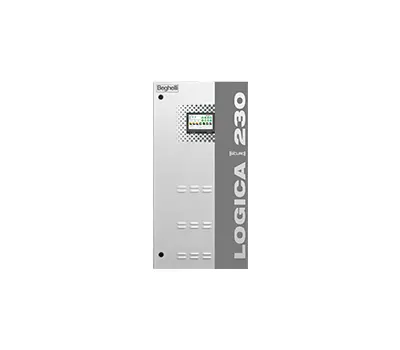

S230Z-H-WK
Automatic test device for central supply Sicuro 230Z
Main station.
| TECHNICAL DATA - GENERAL | |
|---|---|
| Version: |
Version with combined electronic and battery cabinet as wall cabinet
|
| Battery capacity: |
7,2 to 12 Ah
|
| Charging modules: | max. 2 |
|
Luminaire circuit modules
(internal):
|
max. 5
|
|
Luminaire circuit modules
(external):
|
max. 64 (eAK 2 EÜ/SÜ) resp. 32 (eAK 4 EÜ/SÜ)
|
| 11KW switchover modules: | 1 |
| Sub station outputs: | - |
| LSSA inputs (internal): |
-
|
| LSSA modules (internal): |
max. 2 (optional)
|
| LSSA modules (external): |
max. 96 (optional)
|
| Mounting: |
Wall
|
| Electronic cabinet: |
Sheet steel, grey, RAL 7035
|
| Battery cabinet: | Sheet steel, grey, RAL 7035 |
| Dimensions (H x W x D): |
1.200 x 600 x 350 mm
|
| Type of protection: |
IP20 (electronic)
IP20 (battery)
|
| Protection class: |
I
|
| Supply: |
1 / N / PE 230 V ~ 50 Hz / 60 Hz (mains)
216 V = (battery)
|
| Ambient temperature: |
-5 °C to +35 °C (electronic)
+20 °C (battery)
|
| Cable entry: |
above
|
| Cable clamps: |
min. 4 mm² (mains)
min. 4 mm² (battery)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
|
| Order code: |
-
|
