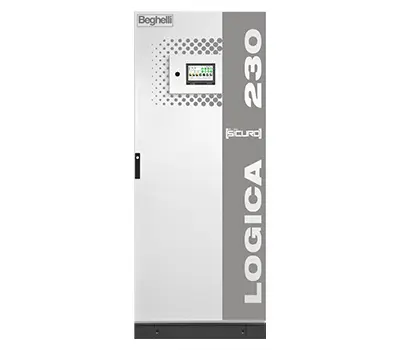

S230N-U-S
Automatic test device for central supply Sicuro 230N
Sub station.
















TECHNICAL DATA - GENERAL
Version:
Version with electronic cabinet as stand cabinet
Luminaire circuit modules
(internal):

max. 32
Luminaire circuit modules
(external):

-
Sub station outputs: -
LSSA inputs (internal): -
LSSA modules (internal): max. 8 (optional)
LSSA modules (external):
max. 96 (optional)
Mounting: Stand
Electronic cabinet:
Sheet steel, grey (RAL 7035)
Dimensions (H x W x D):
2.000 x 800 x 600 mm
Type of protection:
IP54
Protection class:
I
Supply:
1 / N / PE 230 V ~ 50 Hz / 60 Hz
Ambient temperature:
-5 °C to +35 °C
Cable entry:
below / above
Cable clamps:
min. 4 mm² (mains)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
Order code: -

Automatic test device for central supply Sicuro 230N
