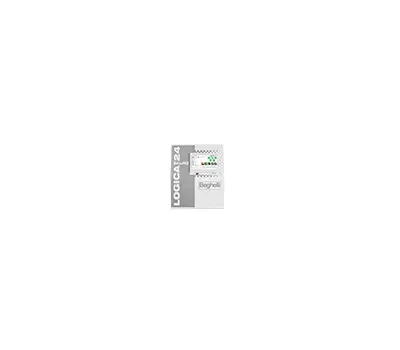

S24Z-U-1
Automatic test device for central supply Sicuro 24Z
Sub station.
| TECHNICAL DATA - GENERAL | |
|---|---|
| Version: |
Version with electronic cabinet as wall cabinet
|
| Battery capacity: |
-
|
| Charging modules: | - |
|
Luminaire circuit modules
(internal):
|
1
|
|
Luminaire circuit modules
(external):
|
-
|
| 11KW switchover modules: | - |
| Sub station outputs: | - |
| LSSA inputs (internal): | 4 |
| LSSA modules (internal): |
-
|
| LSSA modules (external): |
max. 96 (optional)
|
| Mounting: | Wall |
| Electronic cabinet: |
Sheet steel, white, RAL 9003, or sheet steel, grey, RAL 7016
|
| Battery cabinet: | - |
| Dimensions (H x W x D): |
399 x 316 x 144 mm
|
| Type of protection: |
IP20 (electronic)
- (battery)
|
| Protection class: |
I
|
| Supply: |
1 / N / PE 230 V ~ 50 Hz / 60 Hz (mains)
216 V = (battery)
|
| Ambient temperature: |
-5 °C to +35 °C (electronic)
- (battery)
|
| Cable entry: |
above
|
| Cable clamps: |
max. 2,5 mm² (mains)
max. 2,5 mm² (battery)
max. 2,5 mm² (luminaires)
max. 2,5 mm² (control)
|
| Order code: |
white (RAL 9003): 17064
grey (RAL 7016): 17074
|
