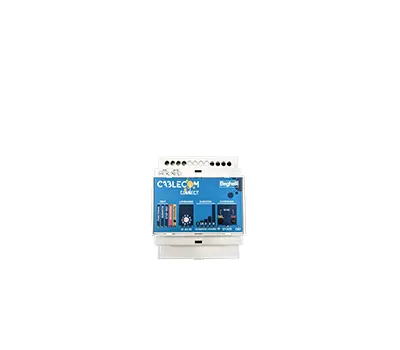

CableCom Connect
Automatic test device for self-contained supply
Automatic test device for monitoring and control of luminaires with self-contained supply and integrated CableCom interface. Communication between test device CableCom Connect and max. 32 luminaires with self-contained supply and integrated CableCom interface via cable bus according to the Powerline principle (voltage supply and bus of luminaire in one cable). Automatic addressing of the luminaires.
| TECHNICAL DATA - CABLECOM CONNECT FOR DISTRIBUTOR INSTALLATION | |
|---|---|
| Housing: |
Polycarbonate, grey (RAL 7035)
|
| Dimensions (H x W x D): |
90 x 71 x 60 mm
|
| Division units: | 4 DU |
| Type of protection: | IP20 |
| Protection class: | II |
| Mounting: | Distributor installation (DIN rail) |
| Mains supply: | 230 V +/- 10 % / 50-60 Hz |
| Ambient temperature: | 0 °C to +40 °C |
