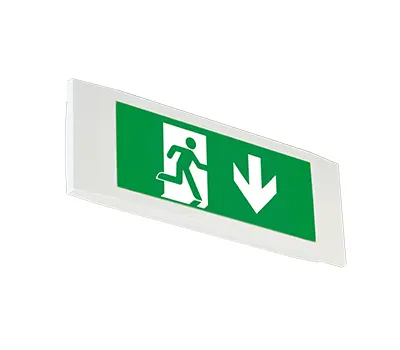

Aestetica
Variable escape sign and safety luminaire
Housing in compact design with plane light outlet area and clear cover. Light guidance through plastic reflector. 1-sided escape route indication through exchangeable escape sign panes, 2-sided escape route indication through exchangeable display panes.

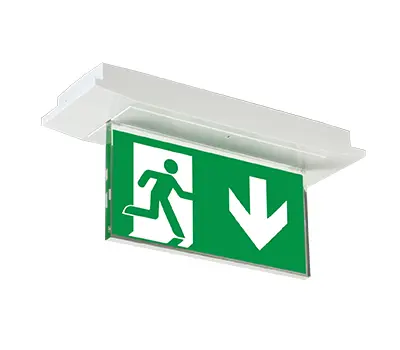

Versions for surface wall and ceiling mounting or with additional accessories for bracket
TECHNICAL DATA - GENERAL | |
---|---|
Housing: |
Polycarbonate, white (RAL 9003)
|
Cover: |
Polycarbonate, transparent
|
Display pane / pane: | PMMA, printed |
Reflector: | Polycarbonate, white |
Service life L80B20: | 50.000 h |
Color stability: | 3 SDCM |
Color temperature: | 6.000 K |
Color rendering index: | 80 |
TECHNICAL DATA - DECENTRAL SUPPLY | |
---|---|
Mains supply: |
24 V +/- 20 % DC
|
Battery supply: | 24 V +/- 20 % DC |
Ambient temperature: |
-20 °C to + 40 °C
|
Protection class: | III |
TECHNICAL DATA - CENTRAL SUPPLY | |
---|---|
Mains supply: |
198 V – 254 V / 50 Hz
|
Battery supply: | 176 V – 276 V |
Ambient temperature: |
-20 °C to + 40 °C
|
Protection class: |
II
|
Mains supply (alt.): | 90 V – 254 V / 50/60 Hz |
Battery supply (alt.): | 90 V – 276 V |
