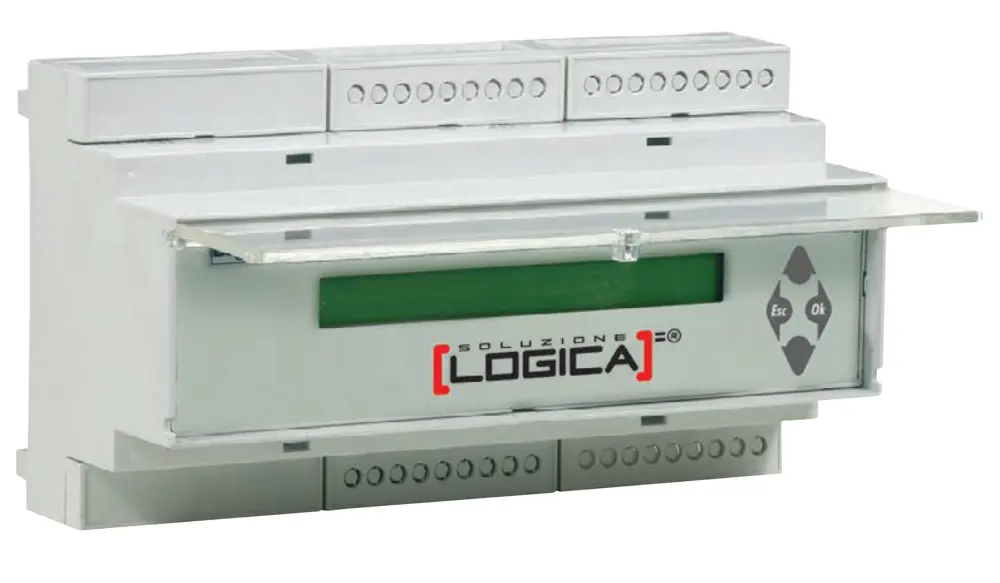

Control unit Logica
Logica control unit for centralised remote control of emergency systems equipped with up to 128 devices via 2-wire non-polarised BUS. The correct number that Unit is  able to manage is 128 if all the luminares are SE and bus is well designed. Beghelli suggests to consider not more than 100 devices. Central unit can also manage uo to  64 DALI device or a mix of LOGICA and DALI. Occupies 9 DIN modules. Equipped with two RS232 ports for remote connection. Command display with scroll menu. Can be interfaced with MODBUS systems (RTU).
Specifications
