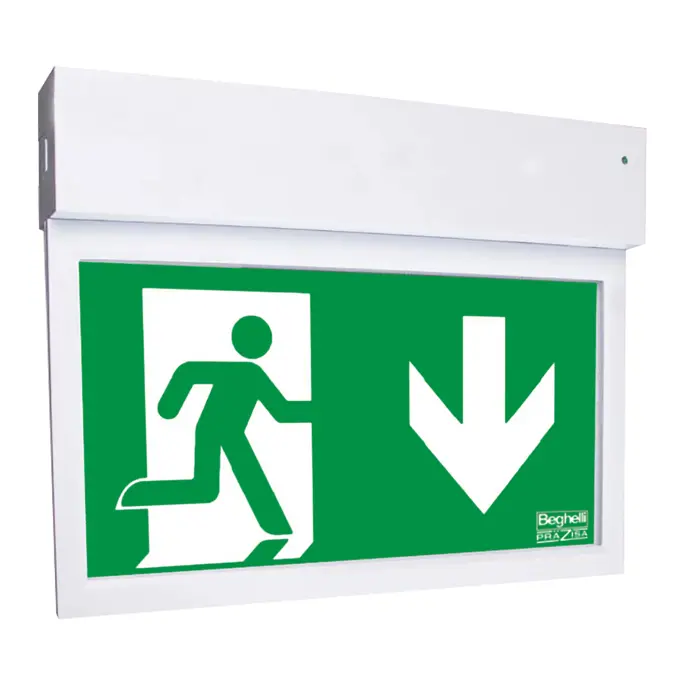

Piana LED

Safety sign flag fixture with visibility 30 meters

Single- or double-sided escape route indication using supplied PVC adhesive pictograms.  Backlight-type light transmission system for maintaining light uniformity on the sign to ensure maximum visibility up to 30.

  • Wall, ceiling, flag, recessed installations
  • Body ABS white RAL 9003
  • Screen ABS white RAL 9003
  • Pictograms Screen-printed polycarbonate
  • Compliance EN 60598-1, EN 60598-2-22, EN 60598-2-2, EN 62034, UNI EN 1838, UNI 11222, EN 60598-2-22
Safety sign flag fixture with visibility 30 meters
Applications: Tertiary, hotels, hospitals, schools, offices, businesses
Charging time: 12h

Devices available with the following control systems:

CT - CentralTest self-powered
Cablecom native centralized diagnosis for immediate connection with a CentralTest Central Unit. Additional modules for expansion to LG, LGFM and DALI
CTS - CentralSystem centralized power supply
Centralized batteries and diagnostics for refurbished luminaires, available in 230Vdc version, but also in 24Vac version, ensuring maximum system safety
HT - From 230V mains or rescuer / DALI system
Mains-powered luminaires, rescuers, LG230 systems, DALI control (HT-DALI)
