Placca Brain Classic Emergenza

Emergenza e segnapasso in uno spazio ridottissimo

È l'ultima generazione di apparecchi per illuminazione di emergenza e segnapasso in ambito civile e nel terziario. Tutta la gamma è stata progettata con una completa dotazione di serie che consente l’installazione all'interno delle serie civili più diffuse. Fruttoluce1 mantiene tutte le caratteristiche illuminotecniche della linea in uno spazio ridottissimo: è il primo apparecchio per emergenza che occupa un solo modulo di scatola 503.

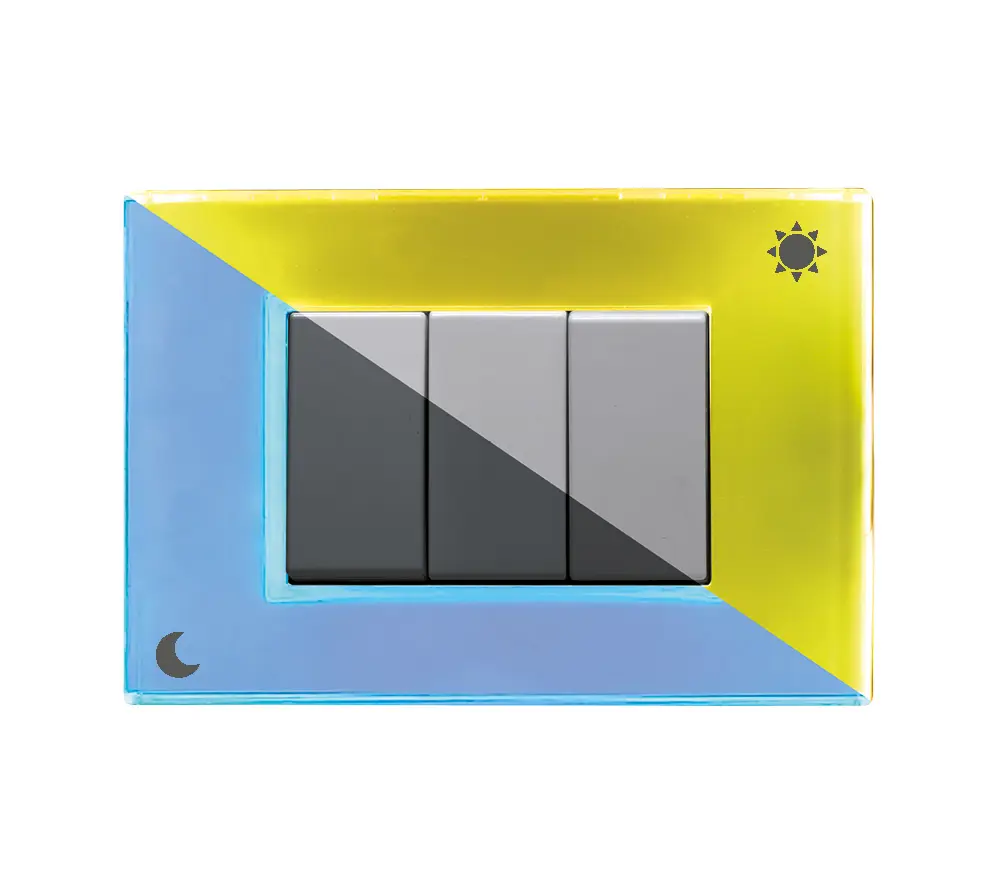

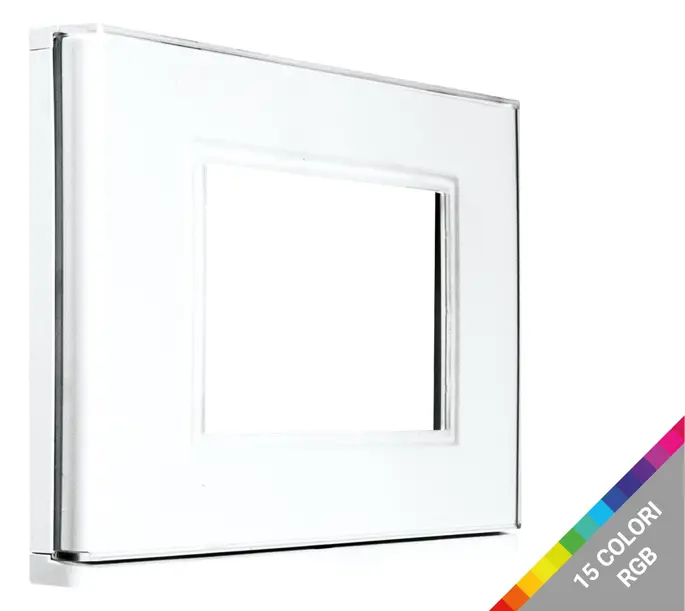

Placca luminosa con 15 colori impostabili e vari livelli di intensità luminosa. Dotata di batteria per illuminazione d’emergenza.

Funzione segnapasso, illuminazione notturna, illuminazione d’emergenza.

Doppia batteria di LED  RGB ad elevata intensità con schema di illuminazione e diffusione luminosa tipo back light.

Installabile su tutte le serie civili più diffuse utilizzando gli stessi frutti e telaio già presenti. Versione bianco e versione nero.

Applicazioni: Civile, terziario, hotel di lusso, show room, ristoranti di design

Installazioni: Su scatola 503



Sistemi di emergenza TRADIZIONALI
TR - Apparecchi autoalimentati TRADIZIONALI con sola diagnosi locale sulle batterie.



COMPATIBILITÀ CON LE SERIE CIVILI PIÙ DIFFUSE
BTicino Axolute - BTicino Axolute AIR - BTicino Light - BTicino Living Light - BTicino Living Light AIR - BTicino Living International - Vimar Plana - Vimar Arkè  Vimar Eikon - Vimar Eikon EVO - Gewiss Chorus - AVE Sistema 44 - ABB Chiara - ABB Mylos. I marchi richiamati nella tabella sono registrati dai rispettivi titolari. Le serie di apparecchi citate, con le quali le placche “BRAIN” risultano meccanicamente compatibili, dispongono delle rispettive placche originali.




Versions
SE,SA
Plus
LUCE NOTTURNA - Sensore di luce con modalità di colore e intensità a scelta, differenziate fra giorno e notte.
Autonomy
1h
Body
Policarbonato, bianco RAL 9003
Diffuser
In PMMA
Control system
TR
Light source
LED
Power supply (V)
230Vac ± 10% ,50÷60Hz
Compliance
EN 60598-1, EN 60598-2-22
Degree of protection
IP20
Room temperature
0°C +40°C
850Gradi
Indicates temperature resistance of the product, as verified using the glow wire test
IP20
Degree of protection against external factors
IK05
Impact protection (according to EN 50102)
DoppioIsolamento
Apparatus with class II insulation level.
Available in: EU

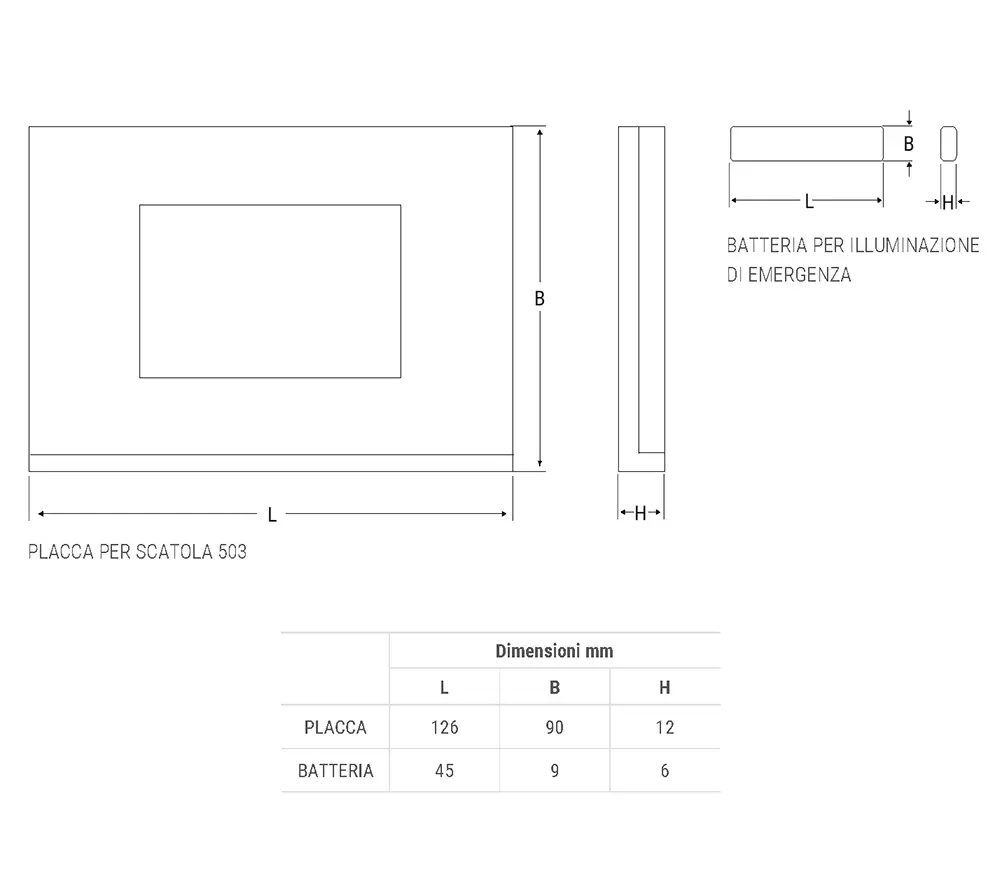

Specifications
Emergenza e segnapasso in uno spazio ridottissimo
Details
LUCE NOTTURNA
Sensore di luce con modalità di colore e intensità a scelta, differenziate fra giorno e notte.
