P236 P258 LED

Tecnologia LED, efficienza e risparmio

Negli apparecchi P236 e P258 LED, lo studio del riflettore è stato particolarmente curato: con l’ausilio di software di progettazione ottica di ultima generazione, sono state ottimizzate le caratteristiche peculiari dell'illuminazione a LED sintetizzando una forma geometrica minimale che consente comunque il totale controllo delle riflessioni luminose. Il massimo delle performance in termini di intensità e uniformità dell'illuminamento per assicurare il massimo confort visivo ed un elevatissimo rendimento luminoso.



  •  Ottica lamellare in alluminio brillantato antiabbagliamento UGR<19.
  •  Cablaggio passante e accessori per il fissaggio meccanico in fila continua.



Scopri il Sistema di controllo Smart Driver Beghelli

Versions
SD
Installations
Ceiling , Suspension
Body
Lamiera di acciaio verniciata alle polveri di poliestere zincata RAL 9003
Optic
Lamellare di tipo Dark Light
Power supply
SD: SELV elettronico, Elettronico a dimmerazione intelligente ED: SELV elettronico
Equivalent power (W)
2x36, 2x58
Light source
LED
Compliance
EN 60598-1, EN 60598-2-1, EN 60598-2-22 (requisiti fondamentali), EN62471 (rischio fotobiologico)
Degree of protection
IP20, IP40
UGR (<)
19
Room temperature
-20°+40°C
Colour temperature (K)
4000
Energy class
A++
RA (>)
80
Opticom
Optical technology for control and direct programming of fixtures
Industriale
Appliance suitable for installations in schools, hospitals, office buildings, industrial facilities
DoppioIsolamento
Apparatus with class II insulation level.
Eco
Designed for energy efficiency, recyclability and reduction of parts subject to wear
IP20
Degree of protection against external factors
SD
Fixture can be interfaced with SmartDriver System
CE
Fixture complies with the European Community directives
950Degrees
Indicates temperature resistance of the product, as verified using the glow wire test
IK05
Impact protection (according to EN 50102)
Available in: EU
Specifications
Tecnologia LED, efficienza e risparmio

Apparecchio da plafone o sospensione per installazioni nel settore terziario. Caratterizzato da un ottimo controllo dell’abbagliamento di tipo Dark light, il suo impiego è particolarmente indicato in tutti i luoghi di lavoro con videoterminali dove gli operatori sono sottoposti per lungo tempo alla luce artificiale.

L’emissione di luce puntuale sul piano di lavoro, gli conferisce elevate caratteristiche di comfort e di precisione del fascio luminoso. Disponibile la gamma di accessori per il cablaggio pesante e per il fissaggio meccanico in filo continuo per l’ottenimento di un sistema civile di ultima generazione.

Sono inoltre disponibili accessori aggiuntivi per integrare l’illuminazione di emergenza: l’Inverter LED per accendere parte dell’apparecchio in caso di black-out, o il Modulo LED da inserire nell’apposita sede.

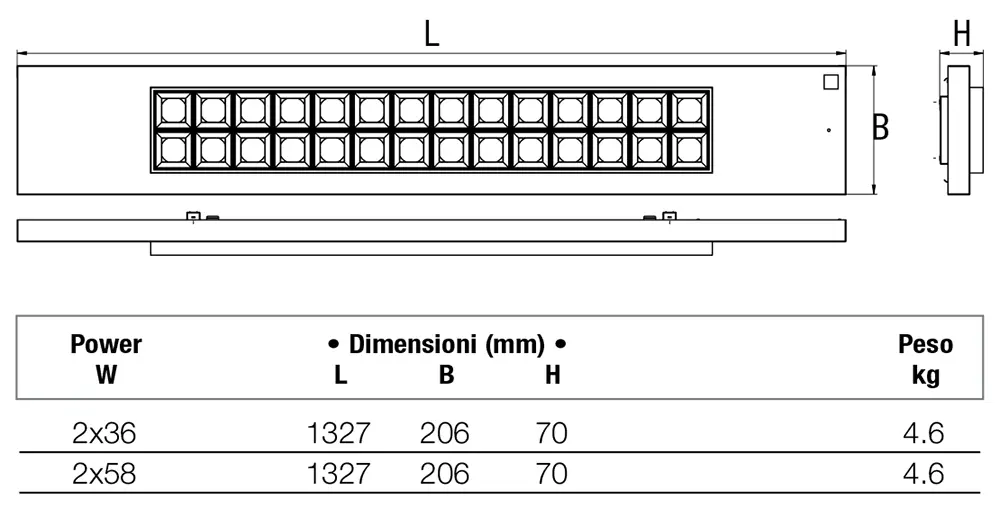

Details
Installazione - Installations
A sospensione
A suspension

A sospensione in fila continua.
A suspension in a continuous row.
A Plafone
Ceiling

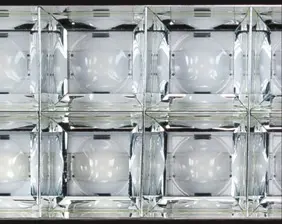

Ottica - Optics
Dark Light Diffondente
Dark Light Wide beam
Emergenza - Emergency
Con inverter LED/ Autoripara.
Inverter LED / Autoripara.
Con inverter EcoLED.
With inverter ECOLED.
