X-Six CCT

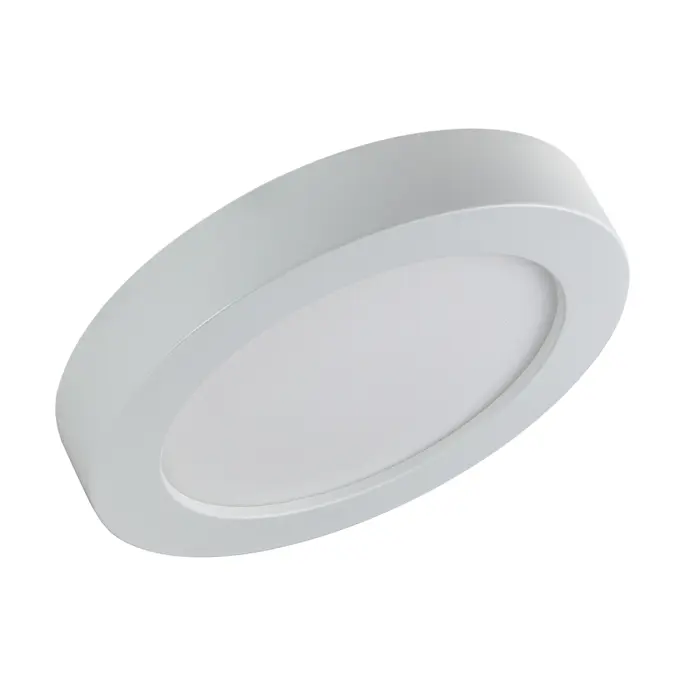

The X-Six CCT is an LED downlight fixture designed to offer maximum installation flexibility and optimal performance for both residential and commercial spaces.
Its main feature lies in its dual mounting options: thanks to the included snap springs, it can be recessed into standard ceiling cutouts (225 mm diameter); alternatively, using the spacer ring and bracket supplied, it easily converts into a sleek surface-mounted ceiling fixture with a quick-fit bayonet system, requiring no ceiling cutouts.
Constructed with a body and diffuser screen made of high-quality opal polycarbonate in a white finish, it consumes 20W of power and features an integrated colour temperature selector (CCT) allowing you to switch between warm light (3000K), natural light (4000K), and cool light (6500K). The opal diffuser screen ensures smooth and glare-free light distribution, packed into an extremely slim profile of just 35 mm in thickness.
APPLICATIONS
- Residential & Civil Sector Ideal for diffused lighting in hallways, entrances, living rooms, kitchens, and circulation areas.
- Offices & Professional Workspaces Provides uniform illumination for workstations, meeting rooms, and corridors.
- Retail & Shops Perfect for illuminating display areas, aisles, and sales floors with adaptable colour temperatures.
Hospitality & Commercial Buildings Excellent solution for hotel lobbies, corridors, waiting rooms, and utility spaces.
TECHNICAL FEATURES
- Power Consumption 20 W.
- Luminaire Luminous Flux 1600 lm (LED Flux 2100 lm).
- Luminous Efficacy 80 lm/W.
- Colour Temperature (CCT) Selectable (3000K - 4000K - 6500K).
- Colour Rendering Index (CRI) > 80LED Lifespan (L90B10 at 25°C): ≥ 50,000 hours.
- Operating Temperature -20°C to +40°C.
- Materials White opal polycarbonate housing and diffuser screen.
- Optics Diffusing, symmetrical.
- Protection Rating & Resistance IP20 | IK05 | Glow wire test 650°C.

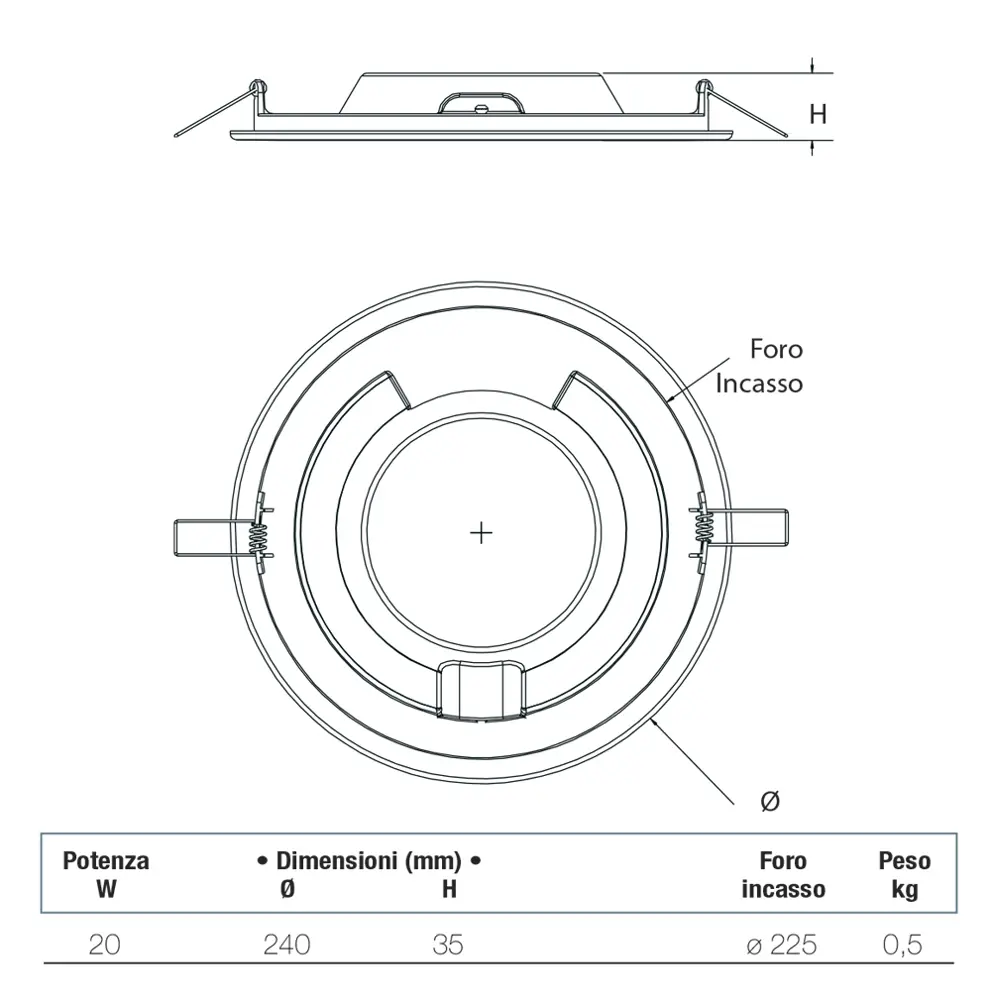

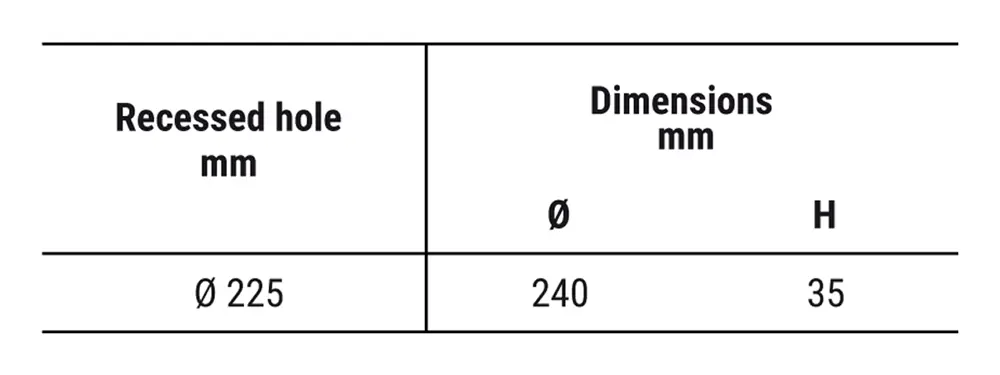

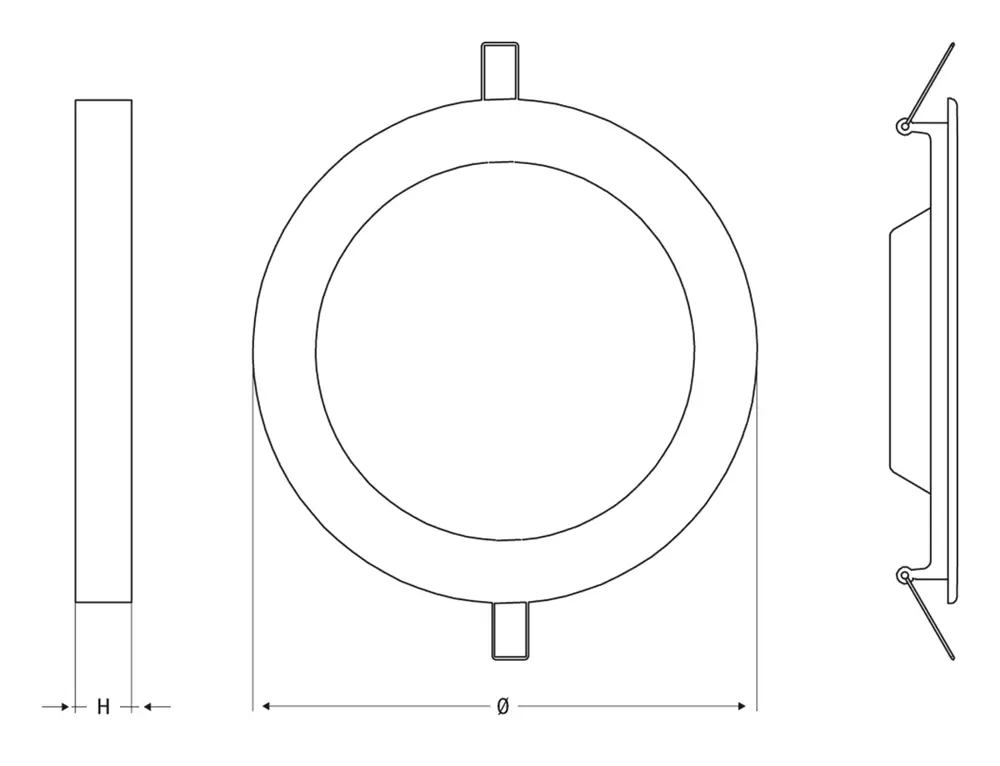

- Dimensions Diameter 240 mm | Thickness 35 mm.
- Recessed Cutout Diameter 225 mmWeight: 0.5 kg.
- Mounting Options Recessed (via snap springs) or Surface-mounted (via quick bayonet bracket and spacer ring).
Compliance & Standards CE, UKCA, EN 60598-1, EN 60598-2-2, EN 62471.
