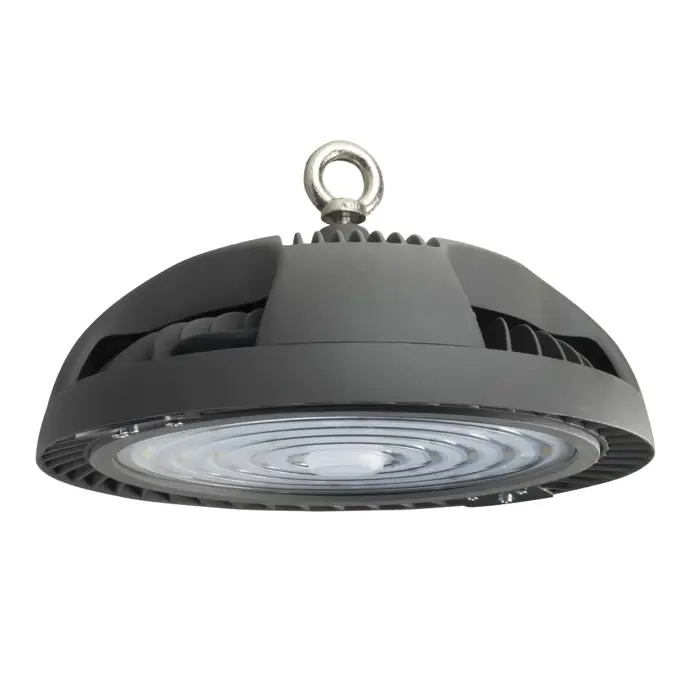

HighBay HP New

HighBay HP è un apparecchio di illuminazione ad alte prestazioni. L'alto flusso da 140Lm/W permette di ottenere prestazioni illuminotecniche elevatissime idonee a sostiutire, in ambiente industriale, logistico e in applicazioni con soffitto di altezza elevata apparecchi Highbay di vecchia concezione con sorgenti ioduri metallici. Il corpo dell'HighBay HP è in alluminio pressofuso con alette dissipatrici che si integrano nella calotta superiore che alloggia il driver. Il diffusore che ingloba le ottiche (da 60° - 90° - 120°) è in PMMA, ed è possibile ordinare separatamente il diffusore in vetro per installazione del prodotto in ambienti gravosi. L'apparecchio, nella versione SD, grazie al modulo radio integrato può essere controllato da remoto per ottimizzarne i flussi e i consumi.


Versions
SD,ED
Installations
Ceiling , Suspension
Body
Alluminio pressofuso verniciato alle polveri di poliestere RAL 7040
Lenses
PMMA trasparente
Optic
Lente circolare
Power supply
elettronico ED dimmerabile 0-10V (Cos j= 0,= 0,95)
Power (W)
90,135,180,216
Light source
LED
Power supply (V)
230Vac ±10% 50/60 Hz
Compliance
EN 60598-1, EN 60598-2-22, EN62471
Degree of protection
IP65
Room temperature
-25°C ÷ +50°C
Colour temperature (K)
4000
Luminous flux (lm)
14000, 21000, 28000, 34000
Energy class
A++
Haccp
Suitable for use in areas subject to HACCP inspection and monitoring, food sector
IK09
Impact protection
IP65
Degree of protection against factors
UVOil
Appliance with UV radiation and mineral oil resistance
SD
Fixture can be interfaced with SmartDriver System
CE
Fixture complies with the European Community directives
Ecodriver
Equipment with fixed light drivers, non-dimmable
Available in: EU
Specifications
Il prodotto è dotato di attacco a golfare per sospensione e, su ordinazione, di staffa regolabile che permette di utilizzare l'apparecchio per installazione a terra o a parete.
Details
Acessori
Installazioni
Fotometrie
