BS100 LED

Schermo microstrutturato antiabbagliamento. Flusso luminoso al vertice della categoria

Apparecchio professionale ad elevato flusso luminoso con schermo antiabbagliamento. Possibilità di collegare un Inverter da ordinare separatamente, dotato di Led di segnalazione dello stato batteria.

Stagna in policarbonato con caratteristiche meccaniche ai vertici della categoria, flusso luminoso fino ad oltre 9.600 lm.
Sistema di alimentazione regolabile su 4 step di flusso luminoso per adattare il prodotto a tutte le esigenze.
Schermo antiabbagliamento per il controllo del flusso luminoso. Versione specifica per luoghi con soffitti particolarmente bassi come i parcheggi (Parking).
Guarnizione di tenuta in poliuretano con ganci a scatto in tecnopolimero.
Applicazioni: Industriale, garage, palestre, aree esterne, aree soggette ad HACCP

Scopri il Sistema di controllo Smart Driver Beghelli

VERSIONE "REGOLABILE"

Sistema di alimentazione regolabile su 4 step per la massima flessibilità di utilizzo grazie ad un alimentatore elettronico dotato di switch per la modulazione della corrente di alimentazione dei LED conferendo all'apparecchio grande versatilità di installazione.

Ottimizzazione del Risparmio energetico variando il Flusso luminoso grazie alle 4 posizioni dello Switch
L’apparecchio viene fornito con regolazione massima di flusso (STEP 4)

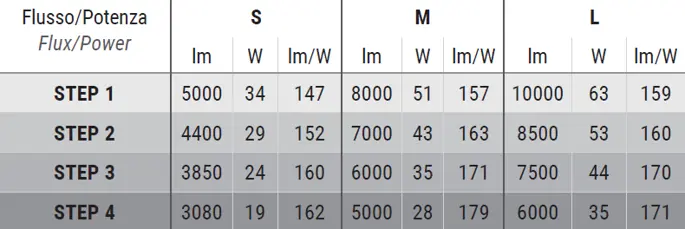

L’impianto di illuminazione deve tenere conto sia della necessità di Illuminamento determinato dal calcolo illuminotecnico che delle esigenze di contenimento dei consumi energetici. BS100 LED Regolabile consente di ottenere questo risultato grazie ad un driver dotato di uno switch con 4 step di modulazione della corrente in modo da assicurare la massima efficienza luminosa, e quindi il massimo risparmio energetico, pur rispettando il flusso luminoso determinato in fase di progettazione. Per i valori di flusso corrispondenti alle posizioni STEP 1/2/3/4 dello switch, vedi tabelle codici.

Il corpo, in policarbonato autoestinguente, è stabilizzato ai raggi UV, lo schermo è dotato di finitura superficiale acidata antiabbagliamento progettata per diffondere la luce in modo ottimale. Apparecchio idoneo per utilizzo in ambienti industriali e outdoor, grazie anche alla guarnizione di tenuta in poliuretano espanso antinvecchiamento e ai ganci di chiusura a scomparsa, in tecnopolimero rinforzato con fibra di vetro.

Request information

Versions

SD,ED

Plus

Schermo con finitura superficiale microstrutturata antiabbagliamento

Installations

Ceiling , Suspension

Body

Policarbonato, RAL 7035

Optic

Acciaio verniciato alle polveri di colore bianco riflettente

Screen

Policarbonato a finitura microstrutturata ad alta trasmittanza

Power supply

SD: elettronico a dimmerazione intelligente

Equivalent power (W)

2x18, 2x36, 2x58, 2x80

Light source

LED

Power supply (V)

SD:Universale MultyVoltage 93÷265 Vac - 50/60Hz?176÷250 Vdc ED: 230Vac ±10% 50Hz

Compliance

EN60598-1, EN60598-2-1, EN60598-2-22(requisiti fondamentali), EN62471(rischio fotobiologico esente)

Degree of protection

IP65

Room temperature

-20°+40°C

Colour temperature (K)

4000

Energy class

A++

RA (>)

Optical technology for control and direct programming of fixtures

Appliance suitable for installations in schools, hospitals, office buildings, industrial facilities

Equipment suitable for lighting of underground car parks, garages, and parking lots

Indicates temperature resistance of the product, as verified using the glow wire test

Designed for energy efficiency, recyclability and reduction of parts subject to wear

Suitable for use in areas subject to HACCP inspection and monitoring, food sector

Degree of protection against factors

Quick connect Plug and Light with no affect on performance

Appliance with UV radiation and mineral oil resistance

Fixture can be interfaced with SmartDriver System

Fixture complies with the European Community directives

Equipment with fixed light drivers, non-dimmable

Electronic catalogue

Available in: EU

Specifications

Apparecchio professionale ad elevatissimo flusso luminoso con sistema antiabbagliamento. Predisposto per l’alimentazione in emergenza, grazie all'innovativo Inverter LED Plug&Light, da ordinare separatamente.

Sistema Smart Driver per la massima flessibilità di utilizzo grazie ai vari moduli aggiuntivi, il Sensore Autodimmer viene fornito di serie sul prodotto base. Il corpo, in Policarbonato autoestinguente, è stabilizzato ai raggi UV, lo schermo è dotato di finitura superficiale microstrutturata antiabbagliamento progettata specificatamente per diffondere la luce dei LED in modo ottimale.

L'apparecchio risulta robusto e longevo nelle sue caratteristiche, grazie anche alla guarnizione di tenuta in Poliuretano espanso antinvecchiamento e ai ganci di chiusura a scomparsa in tecnopolimero a base Poliestere.

Details

Installazione - Installations

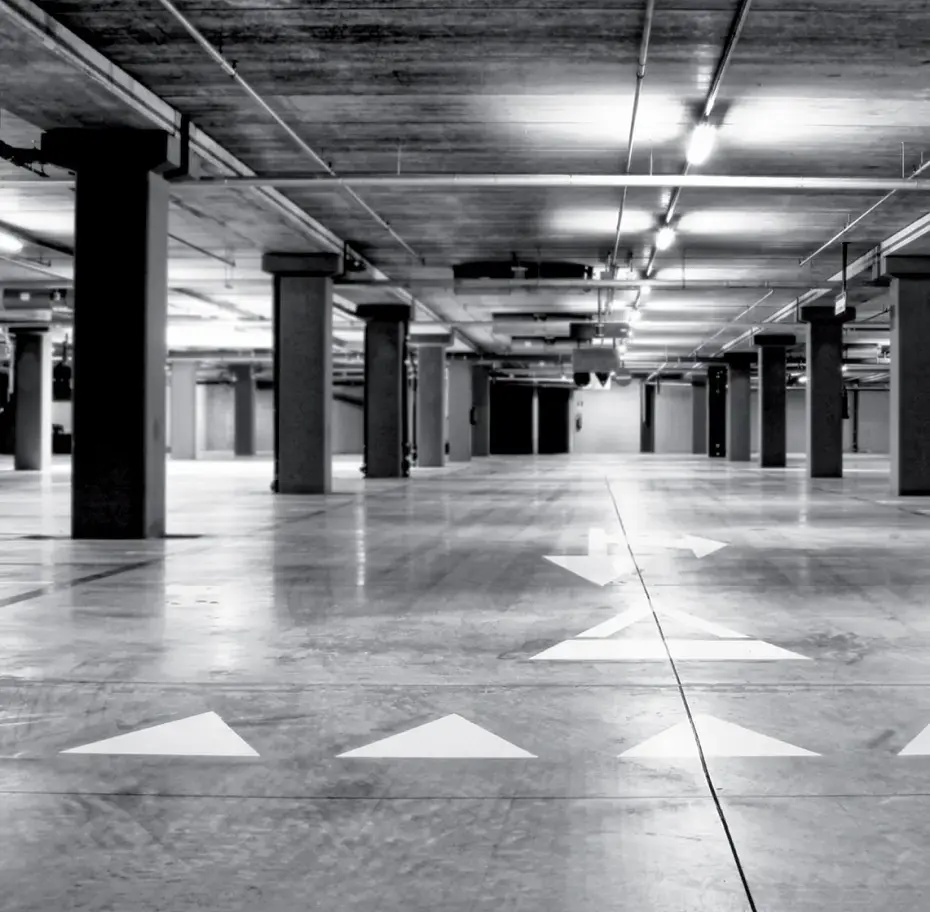

Versione speciale per parcheggi.

Special version for parking.

Fotometrie
