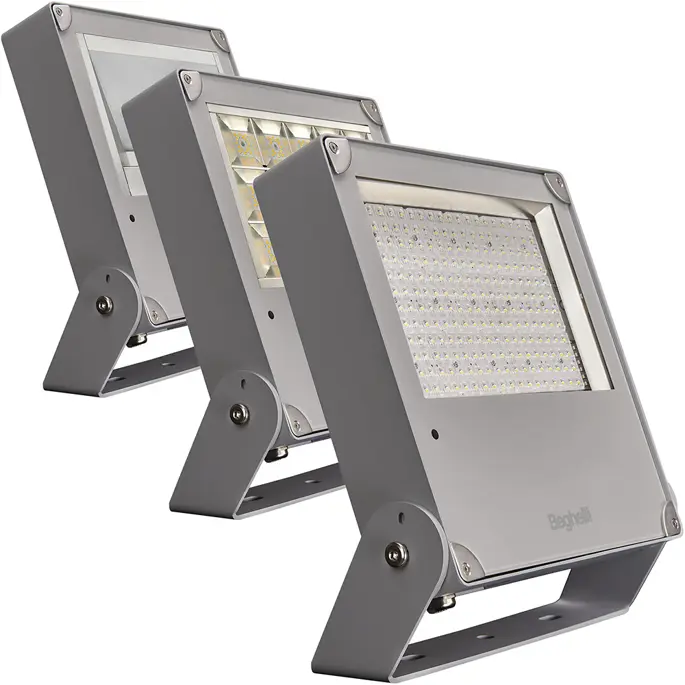

Floodlight for outdoor lighting or large areas, available in seven optical configurations.
Flood Modula M is equipped with Bluetooth transmitter and is prepared for the insertion of Autodimmer and Radio Module (SD versions). Integrated Modula system with Easy Box shunt box to speed and simplify installation and maintenance. Inside Easy Box Modula there is a terminal block for quick wiring, also, in SD version, it integrates the slot for the quick insertion of various optional Expansion Modules. Adjustable support bracket with goniometric graduation and base offset from the luminaire to fix it without removing the lamp body. Flood, in the version with Reflectors, features protection against electrical discharge and higher efficiencies. Transmission and communication accessories available for SD and 'emergency versions.
Flood Modula M is equipped with Bluetooth transmitter and is prepared for the insertion of Autodimmer and Radio Module (SD versions). Integrated Modula system with Easy Box shunt box to speed and simplify installation and maintenance. Inside Easy Box Modula there is a terminal block for quick wiring, also, in SD version, it integrates the slot for the quick insertion of various optional Expansion Modules. Adjustable support bracket with goniometric graduation and base offset from the luminaire to fix it without removing the lamp body. Flood, in the version with Reflectors, features protection against electrical discharge and higher efficiencies. Transmission and communication accessories available for SD and 'emergency versions.
The integrated wireless transmission system allows communication between the devices so that groups can implement the same commands without additional wiring. Using the Bluetooth interface module, groups can be controlled wirelessly.
- Applications: industrial, tertiary, hospitals, hotels, schools, gyms, sports fields
- Installation: wall, floor
- Body: die-cast aluminum RAL 7040
- Lens optics: Polycarbonate
- Reflector optics: polished aluminum antiridescent
- Screen: tempered glass

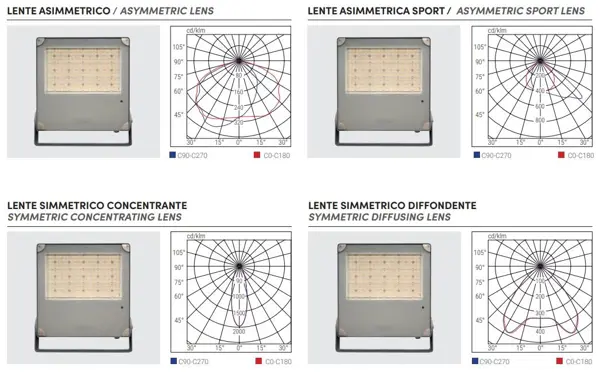

Available with 7 different optics:
Asymmetrical Lens (L AS): overhead or building wall installations.
Asymmetrical Sport Lens (L SPORT): installation in sports facilities.
Symmetrical Concentric Lens (L CONC): with a narrow 30° beam.
Symmetrical Diffusing Lens (L DIF): standard ground and wall installations.
Concentrating Symmetrical Reflector (R CONC): long distances, narrow beam 30°.
Symmetrical Diffusing Reflector (R DIF): floor or wall applications, 90° beam.
Asymmetrical Reflector (R AS): versatile ground or wall applications, sports facilities.
Asymmetrical Lens (L AS): overhead or building wall installations.
Asymmetrical Sport Lens (L SPORT): installation in sports facilities.
Symmetrical Concentric Lens (L CONC): with a narrow 30° beam.
Symmetrical Diffusing Lens (L DIF): standard ground and wall installations.
Concentrating Symmetrical Reflector (R CONC): long distances, narrow beam 30°.
Symmetrical Diffusing Reflector (R DIF): floor or wall applications, 90° beam.
Asymmetrical Reflector (R AS): versatile ground or wall applications, sports facilities.
Main features:
Applications: industrial, tertiary, hospitals, hotels, schools, sports grounds
Installation: wall, floor
Housing: die-cast aluminium RAL 7040
Lens optics: Polycarbonate
Reflector optic: anti-glare polished aluminium
Shield: tempered glass
Applications: industrial, tertiary, hospitals, hotels, schools, sports grounds
Installation: wall, floor
Housing: die-cast aluminium RAL 7040
Lens optics: Polycarbonate
Reflector optic: anti-glare polished aluminium
Shield: tempered glass
Outdoor projector available with 7 different optics:
Asymmetrical Lens: Overhead or building wall installations
Asymmetrical Sport Lens: Installation in sports facilities (padel, tennis, five-a-side football, etc.)
Symmetrical Concentric Lens: Installations with a narrow beam angle of 30 degrees
Symmetrical Diffuse Lens: Standard ground and wall installations
Asymmetrical Sport Lens: Installation in sports facilities (padel, tennis, five-a-side football, etc.)
Symmetrical Concentric Lens: Installations with a narrow beam angle of 30 degrees
Symmetrical Diffuse Lens: Standard ground and wall installations

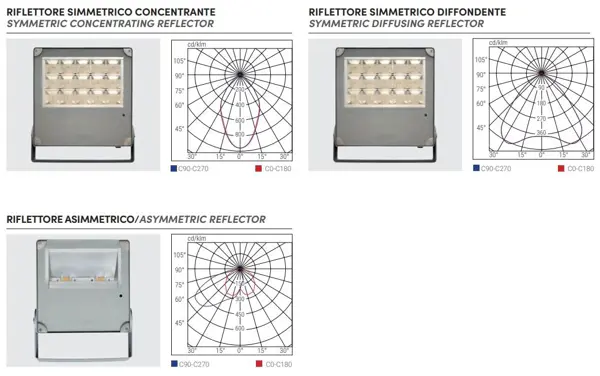

Aluminium reflectors to maximise illumination and achieve maximum longevity of the optic:
Symmetrical Concentrating Reflector: suitable for long distances, narrow angle beam, 30 degrees
Symmetrical Diffuse Reflector: ground or wall applications, 90 degree beam angle.
Asymmetrical Reflector: both floor and wall applications, sports areas and generalist.
Symmetrical Diffuse Reflector: ground or wall applications, 90 degree beam angle.
Asymmetrical Reflector: both floor and wall applications, sports areas and generalist.
