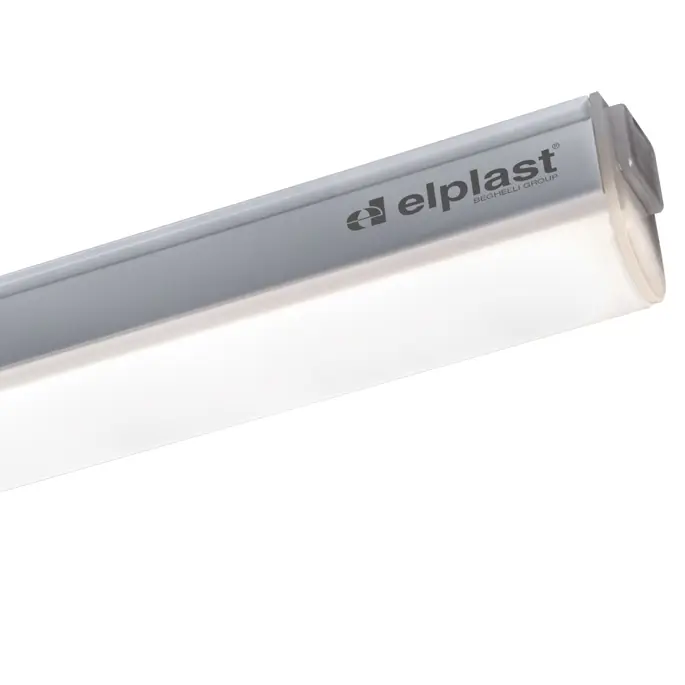

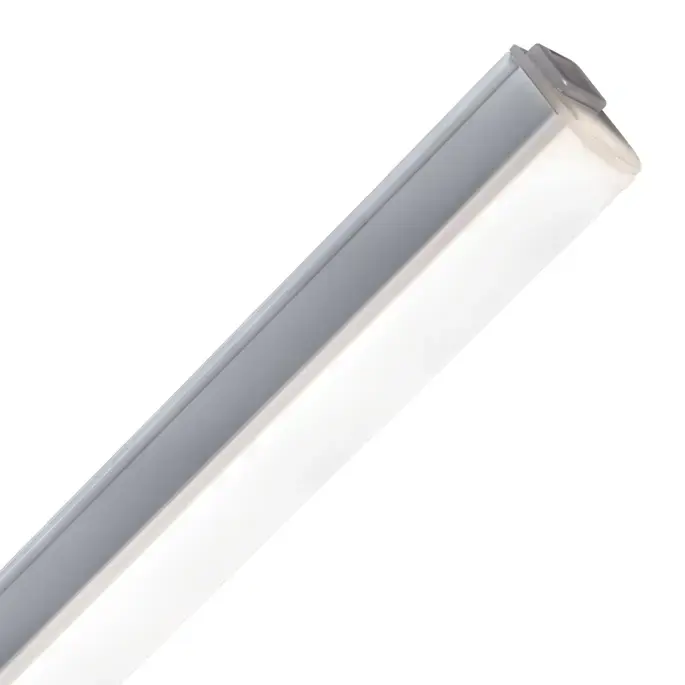

RegLED CCT

Continuità di luce a spessore ridotto.

Apparecchio concepito per l’illuminazione sottopensile e indiretta, sia per uso professionale (centro commerciali, vetrine) che domestico. L’utilizzo di LED ad alto rendimento determina bassissimi consumi. Disponibile in cinque misure, è dotato di cablaggio passante per il montaggio in serie. Il montaggio in serie avviene garantendo la continuità della luce emessa, evitando pertanto zone di ombra fra una reglette e l’altra. Il sistema adottato permette la facile giunzione delle singole reglette in fila continua, con un unico punto di alimentazione (cablaggio passante con spinotto maschio/femmina) senza interrompere la “linea” luminosa.  Lo schermo adottato è infatti progettato per diffondere la luce su tutta la lunghezza dell’apparecchio, senza creare zone d’ombra in corrispondenza del giunto. Il collegamento in serie è possibile senza ulteriori accessori: il connettore al cavo di alimentazione è lo stesso che assicura il collegamento con l’eventuale modulo successivo. Ogni modulo mantiene comunque l'accensione indipendente da quelli che lo precedono o lo seguono.
Installations
Ceiling , Wall
Body
Policarbonato bianco
Diffuser
Policarbonato finitura opale
Power supply
Integrato, Elettronico
Power (W)
4,8,10,14,18
Light source
LED
Power supply (V)
220/240Vac - 50/60Hz
Compliance
EN60598-1, EN60598-2-1, EN62471
Degree of protection
IP20
Room temperature
-20°+40°C
Colour temperature (K)
3000, 4000, 6500
Luminous flux (lm)
340, 680, 850, 1190, 1530
Energy class
A++
RA (>)
80
Ledinside
Fixtures with LED light source
850Gradi
Indicates temperature resistance of the product, as verified using the glow wire test
DoppioIsolamento
Apparatus with class II insulation level.
IP20
Degree of protection against external factors
Available in: EU
Specifications
Continuità di luce a spessore ridotto.
Regolazione CCT a bordo apparecchio
La Temperatura colore definisce l'aspetto della luce di un LED bianco. La CCT viene espressa in gradi Kelvin; una luce calda si aggira sui 3000K, un bianco neutro intorno ai 4000K e un bianco freddo da 5000 a 6500K. Selezionare la temperatura di colore appropriata per ogni applicazione è un aspetto fondamentale per la progettazione degli apparecchi, ma non sempre è possibile svolgere in anticipo una corretta analisi della temperatura colore più idonea che tenga conto dell’uso e dell’ambiente di installazione. Diventa quindi estremamente versatile poter cambiare la CCT di uno stesso apparecchio in opera, agendo su un semplice interruttore come nel caso di RegLED CCT dove basta premere in successione il tasto di accensione per ottenere le tre temperature colore impostabili: 3000, 4000, 5000K

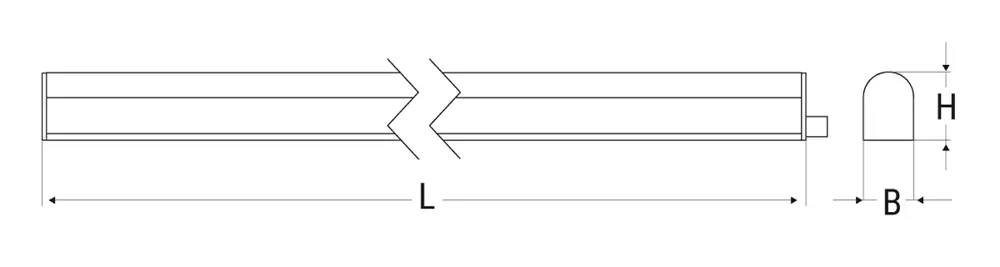

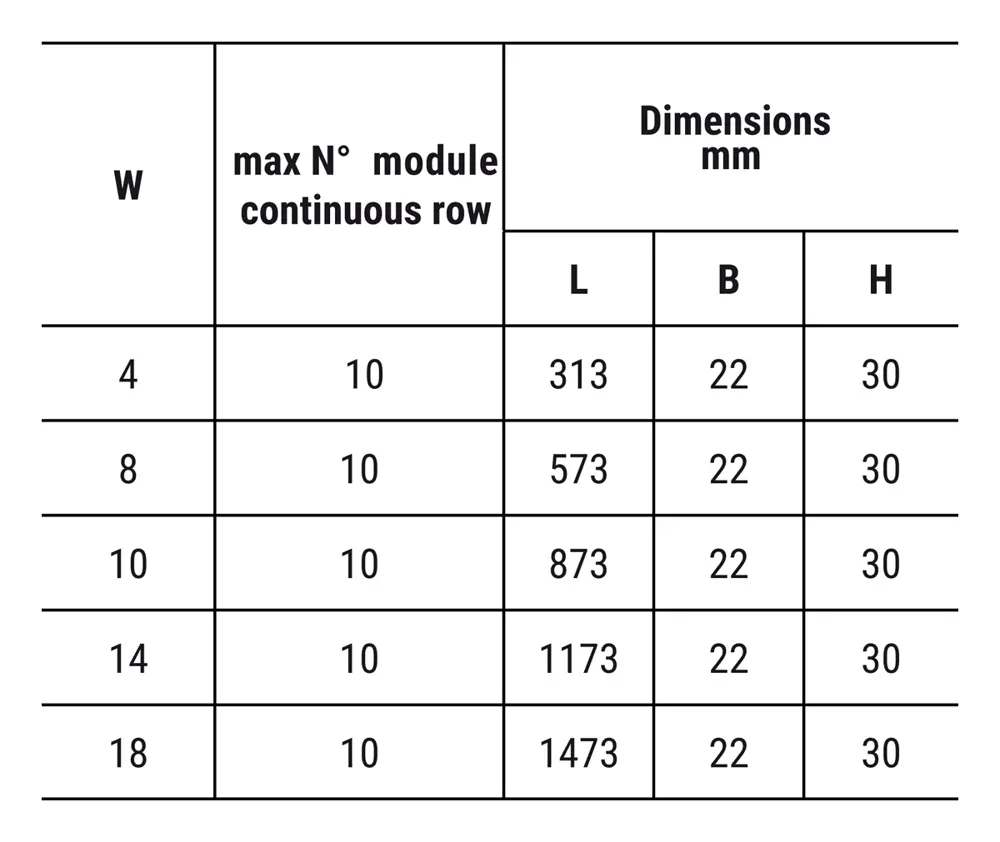

Details
Installazione

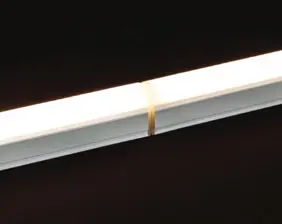

In fila continua senza interruzione di luce
Continuous row installation without light gaps
Connessione multifunzione alla rete o ad altro modulo
