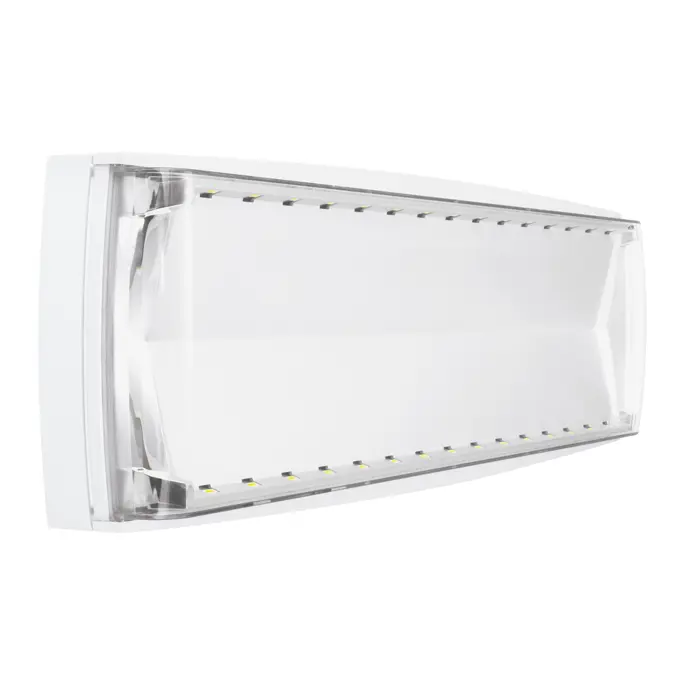

Logica LED

The technological future of centralised emergency

The perfect technological expression of LED emergency lighting. A housing specially studied to guarantee Protection degree IP65, made to a modern, rational design. A fixing system with a rapid bracket, to ensure simple and fast installation. In the Logica LED, particular care was devoted to the study of the louvre: with the aid of optical design software of the latest generation, the particular features of LED lighting have been optimised, achieving a minimal geometric shape that nevertheless allows total control of light reflections. The maximum of performance both in terms of average flux and uniformity and size of lighting.



Autonomy
1h, 2h, 3h, 6h
Installations
Wall , Recessed
Body
Grey polycarbonate RAL 7035
Optic
Symmetrical, metallized antiglare polycarbonate
Equivalent power (W)
8, 11, 24
Control system
TR, AT
Light source
LED
Power supply (V)
230
Degree of protection
IP65
Room temperature
0°+40°C
Fixtures with LED light source
Appliance suitable for installations in schools, hospitals, office buildings, industrial facilities
Equipment suitable for hospital installations
Product with 4-year extended warranty on all parts, including the battery.
Emergency equipment with 1 hour of autonomy after 12 hours of charging
Indicates temperature resistance of the product, as verified using the glow wire test
Apparatus with class II insulation level.
Designed for energy efficiency, recyclability and reduction of parts subject to wear
Impact protection
Degree of protection against factors
Unit characterised by high resistance to UV radiation
Emergency equipment for permanent lighting
Emergency equipment for non-permanent lighting
Self-powered fixture with local AUTOTEST diagnostic function
Self-powered appliance without diagnostic function
Self-powered unit with local and remote control LOGICA diagnostics
Self-powered unit with local and radio remote control LOGICA FM diagnostics
Fixture complies with the European Community directives
Available in: EU
Specifications
The technological future of centralised emergency

This emergency lighting fixture is characterised by particularly sophisticated electronic technology. Logica LED is the only emergency lighting fixture, supplied in a centralised version (LG, LGFM), which configures automatically in an Autotest version (AT) if not connected to a control unit. The circuit also allows the fixture to be customised to suit the
necessities of use, adjusting its autonomy (1h/2h/3h, up to 6h for the 8W version) and, in the case of the SA mantained version, it can be switched to a PS version, adjusting the light intensity according to the requirements of the type of public establishment. The latter opportunity is a winner when the safety sign becomes the only visible element. It must therefore be immediately identifiable, elegant, non invasive and uniform in all fixtures. Thanks to the symmetry and extreme uniformity of lighting that characterise the Logica LED, it can be installed, without a predefined orientation, on the wall, on the ceiling and recessed using the kit provided, complete with box and a frame that covers the wires. Inside the housing is a louvre with dual reflection, which in turn contains two series of highly efficient LEDs that ensure unprecedented technical lighting output (up to 1500lm). The highly transparent polycarbonate diffuser has been designed to seal the optics and obtain Protection degree IP65.

Details
Installazioni - Installations
Installazione a parete con staffa rapida e bolla di livello.
Wall mounting bracket with quick and level.
Installazione a controsoffitto e cartongesso.
Suspended ceiling installation and drywall.
Installazione a incasso.
Flush mounting.
Griglia lampada Logica.
Logica metal grid.
Schermi - Screens
