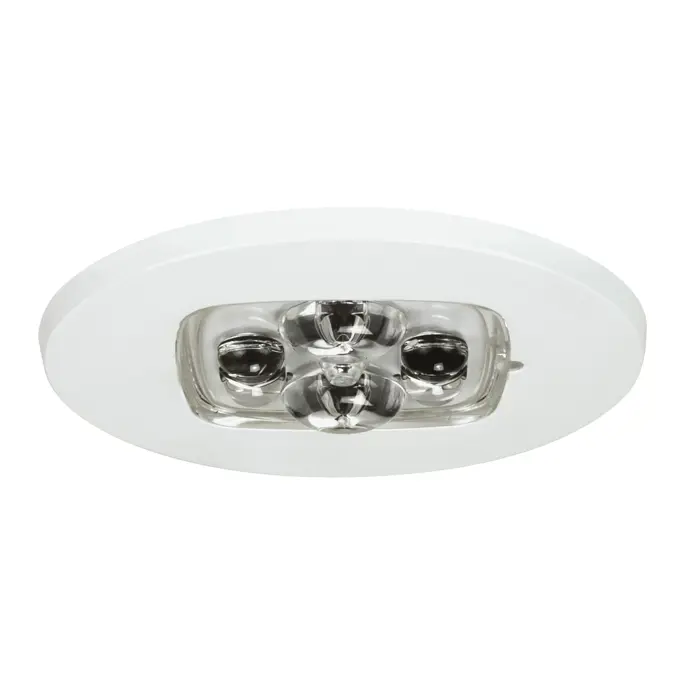

Dot - ArchiEco

Apparecchio di emergenza verniciabile e amico dell'ambiente

La nuova linea di emergenza destinata al mondo dei lighting designer. Un concept innovativo che permette di far “scomparire” gli apparecchi installati grazie ad un trattamento superficiale che ne consente la verniciabilità, anche con normali pitture murarie.
Inoltre, la linea ArchitecturalEco, mantiene un ridotto impatto ambientale grazie all’utilizzo di materiali completamente rinnovabili, materie prime riciclate o biodegradabili e compostabili come il PHA, un polimero di origine organica.


ArchiEco:  linee dal design pulito ed elegante con superficie verniciabile insieme alla parete, realizzata con materiali riciclabili ed in parte compostabili.

Ridotte dimensioni con un flusso luminoso, fino a oltre 1000lm. Segnaletica laser con Modulo Orma IP65.

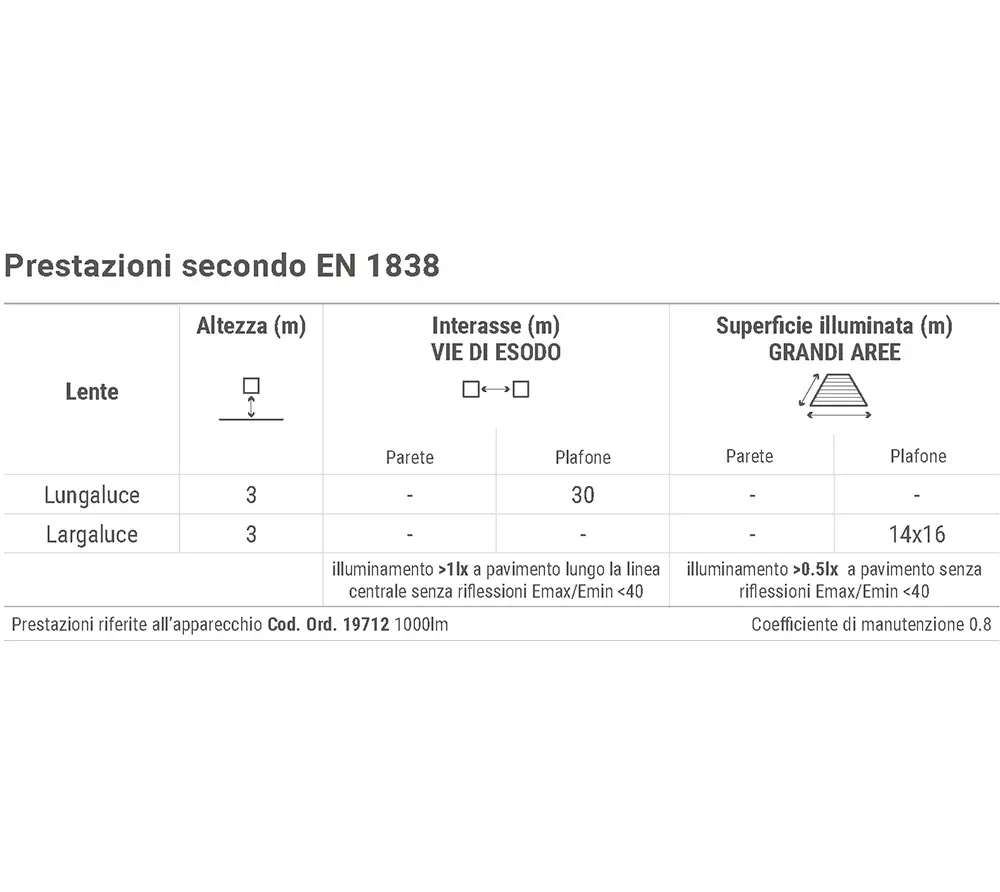

Con la rotazione della lente l’apparecchio è idoneo sia per grandi aree (225m2) che per vie di esodo fino a 23m.

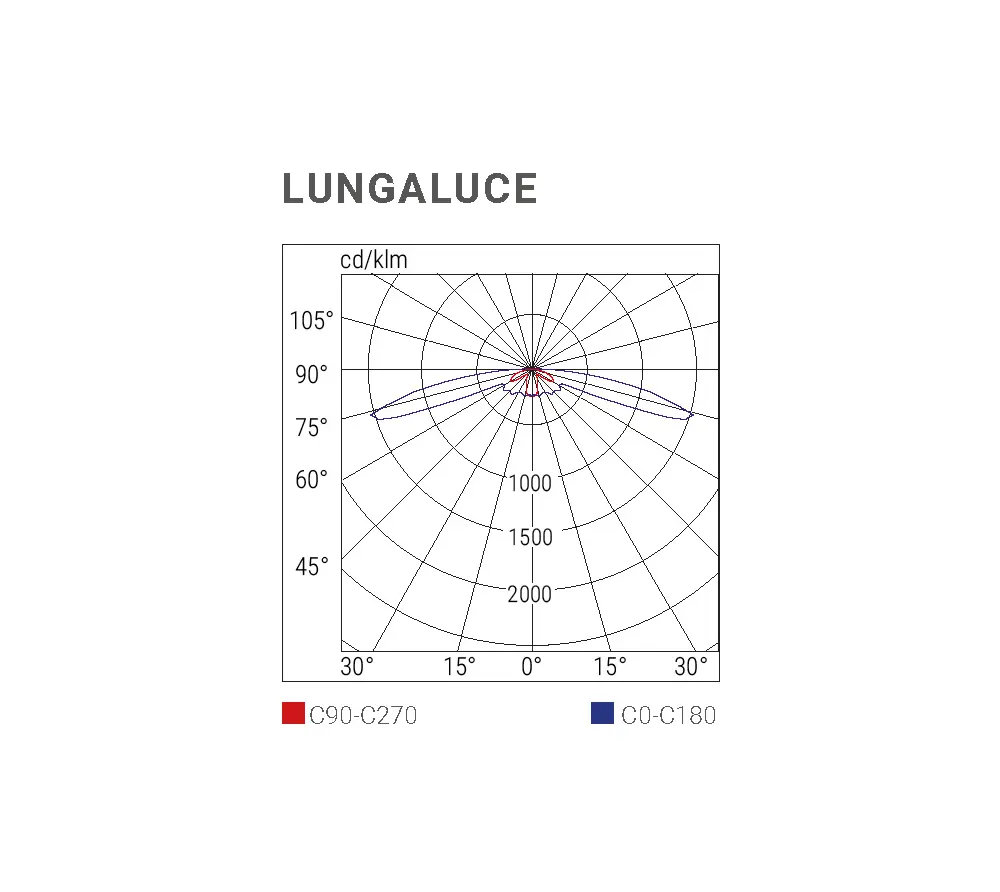

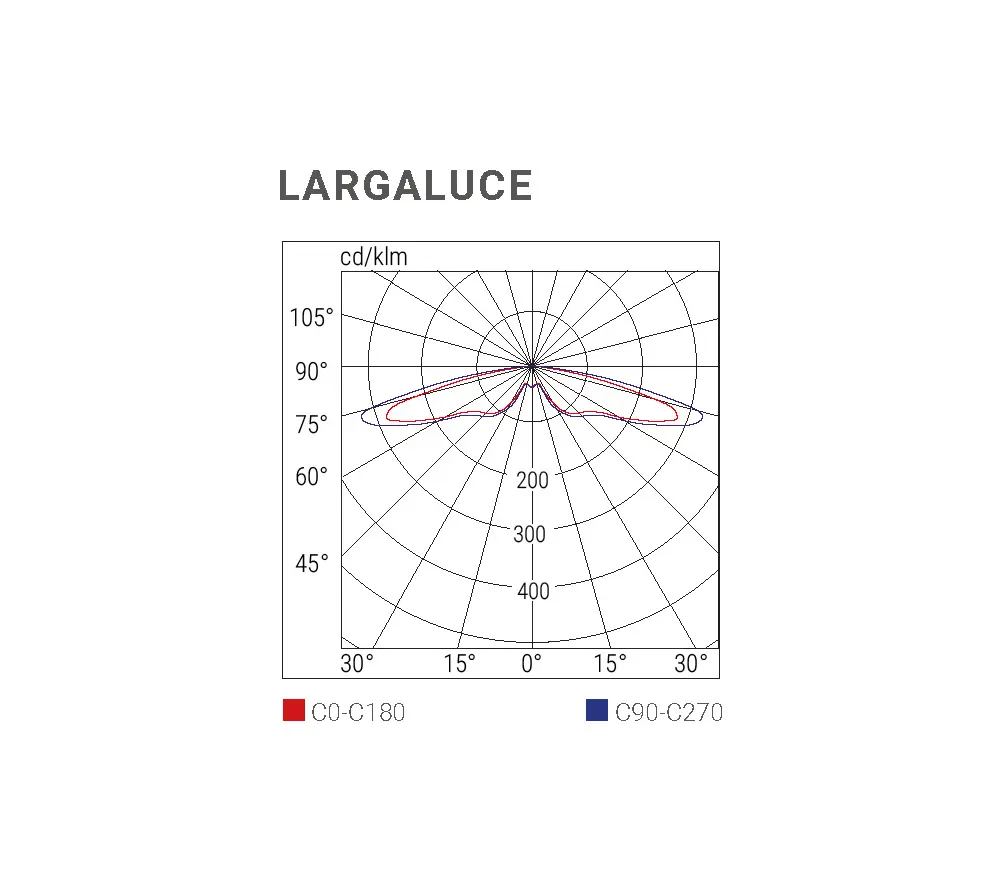

Doppio schema ottico realizzato con due coppie di lenti che ruotano sull’asse e combaciano in alternativa su due LED ad elevatissima efficienza.
Applicazioni: Terziario, uffici, cinema, hotel, musei scuole , negozi, centri commerciali, show room di design
Tempo di ricarica: 12h

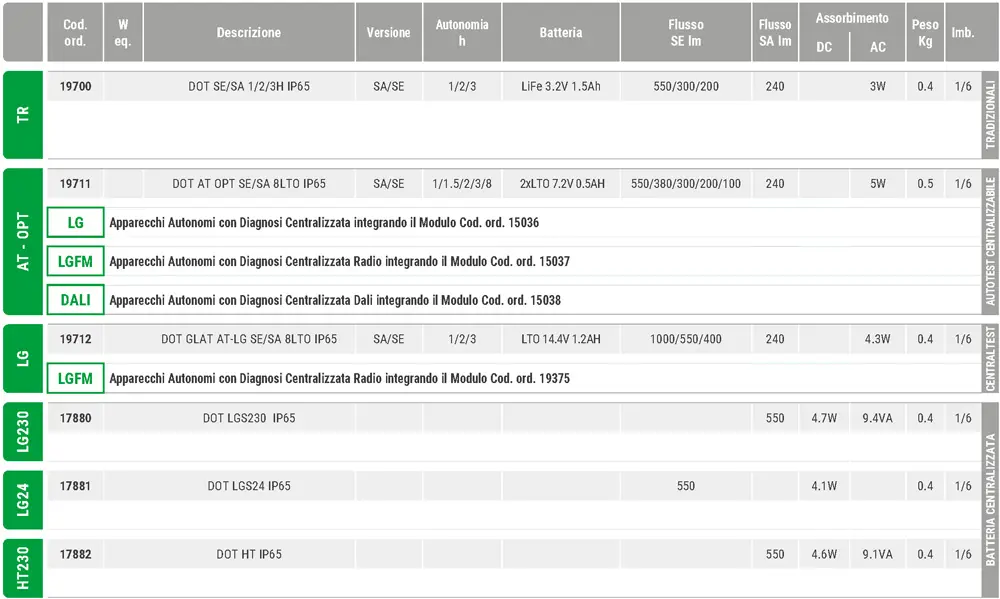

Sistemi di emergenza TRADIZIONALI
TR - Apparecchi autoalimentati TRADIZIONALI con sola diagnosi locale sulle batterie (Battery Control System).

Sistemi di emergenza AUTOTEST CENTRALIZZABILE
AT - OPT (OPTICOM) - Apparecchi autoalimentati AUTOTEST con programmazione di flusso ed autonomia (min 1h – max 8h) e test da APP dedicata. Gestione da APP del LOGBook impianto. Disponibili moduli espansione LG - LGFM - DALI per collegare gli apparecchi ai relativi sistemi CENTRALTEST.

Sistemi di emergenza CENTRALTEST
LG (LOGICA) - Apparecchi autoalimentati AUTOTEST a diagnosi e controllo centralizzato con centrale LG. Anche in remoto con CLOUD NuBE.
LGFM - Apparecchi autoalimentati a diagnosi e controllo centralizzato RADIO con centrale LGFM. Anche in remoto con CLOUD NuBE.
DALI - Apparecchi autoalimentati a diagnosi e controllo centralizzato DALI integrando il modulo DALI opzionale.

Sistemi di emergenza BATTERIA CENTRALIZZATA
LG230 - Apparecchi alimentati da batterie centralizzate 216Vdc.
LG24 - Apparecchi alimentati da batterie centralizzate 24VDC.
HT230 - Apparecchi alimentati da tensione di rete, da soccorritori e da sistema LG230.

Versions
SE,SA
Autonomy
1h, 1.5h, 2h, 3h, 8h
Installations
Recessed
Body
PHA bianco RAL 9003
Optic
In PMMA
Control system
TR, AT, LG/LGFM
Light source
LED
Power supply (V)
230Vac ± 10%, 50÷60Hz
Compliance
EN 60598-1, EN 60598-2-2, EN 60598-2-22, UNI EN 1838, UNI 11222, EN 62034
Degree of protection
IP65
Room temperature
0°C +40°C, -20°C +45°C
850Gradi
Indicates temperature resistance of the product, as verified using the glow wire test
IK07
Impact protection
IP65
Degree of protection against factors
DoppioIsolamento
Apparatus with class II insulation level.
ArchiEco
TenYears
Nube
BConnect
Available in: EU
Specifications
Details
Dot

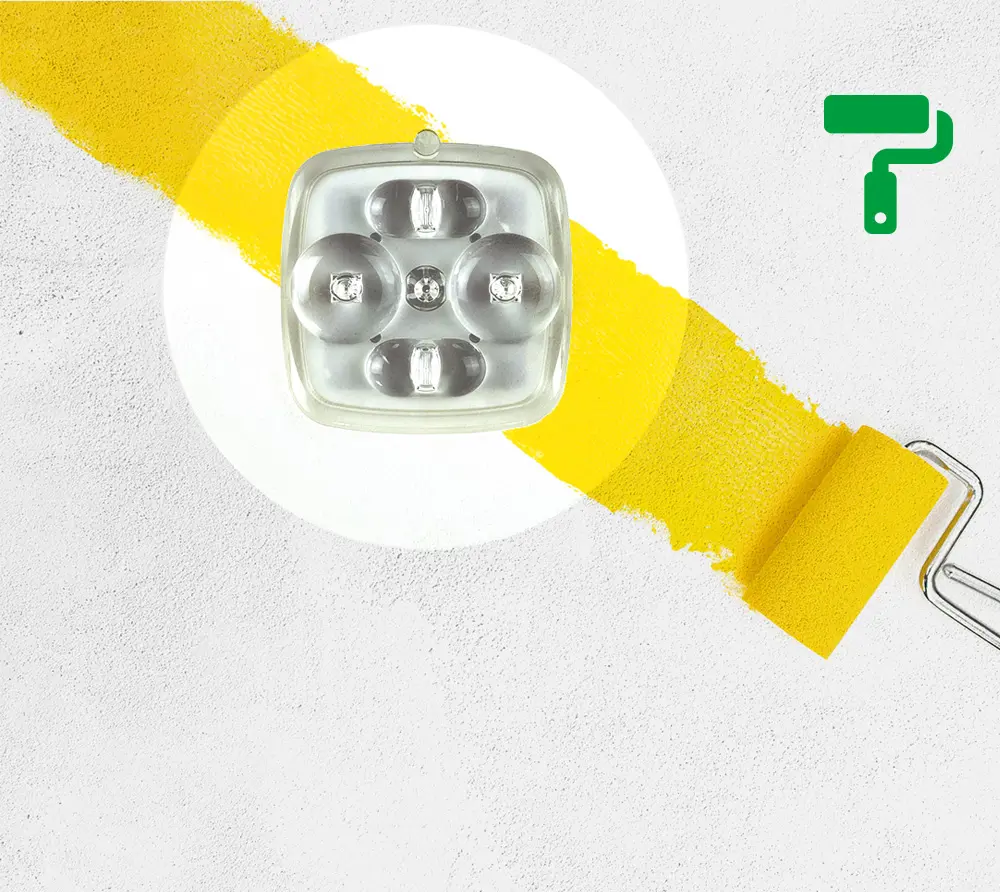

Trattamento superficiale che ne consente la verniciabilità anche con comuni pitture murarie.

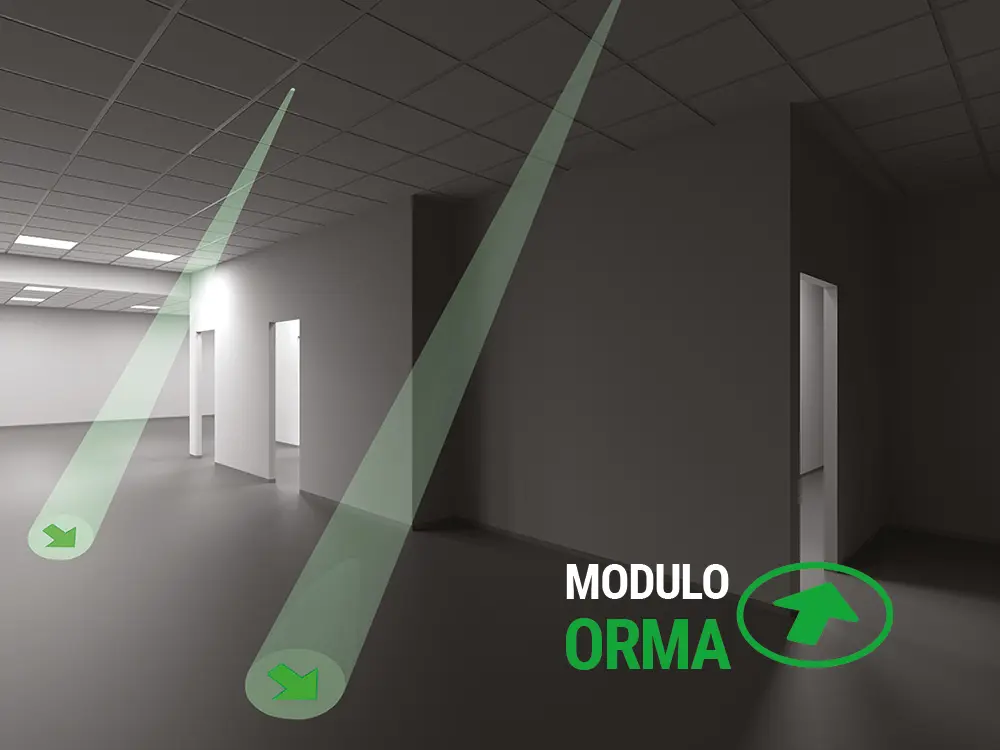

MODULO ORMA LASER
Microproiettore laser che emette un fascio conico asimmetrico a forma di freccia,  in modo luminoso ed evidente producendo un pittogramma virtuale per segnalare la via di esodo  più vicina. Per posizionare al suolo l’immagine nel punto più idoneo e con il corretto orientamento del segnale, è sufficiente ruotare il corpo del dispositivo.
