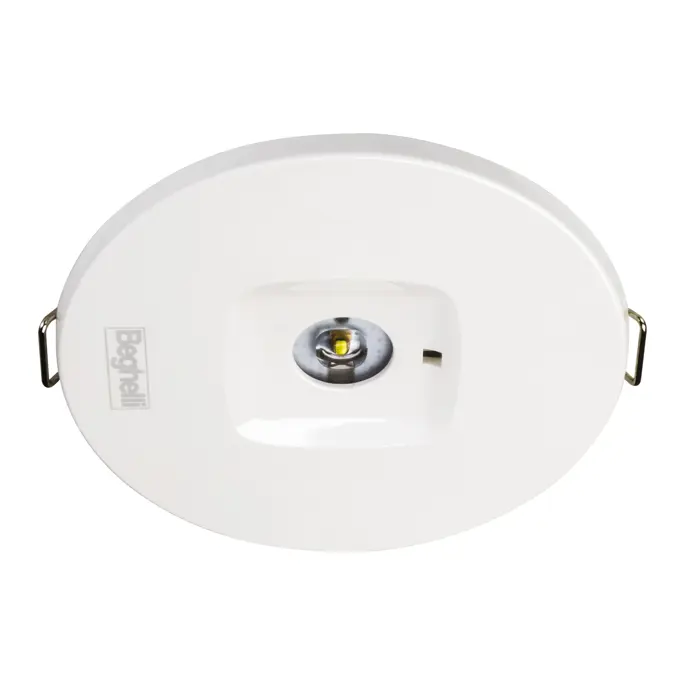

Multi Lens

La lampada più bella è quella che non si vede

Un apparecchio rivoluzionario in termini concettuali che sembra esprimere un pensiero storico dell'architettura minimalista: "La lampada più bella è quella che non si vede". L'incarnazione perfetta di questo concetto trova innumerevoli riscontri specie in termini di massima riduzione del numero dei corpi illuminanti e di dimensioni a vista dell’apparecchio: soli 12 cm di diametro e pochi millimetri di spessore. L'apparecchio è innovativo anche nel suo aspetto multifunzione, scegliendo fra le varie lenti in dotazione si modifica radicalmente la forma e la dimensione dell'area illuminata.



Apparecchio per illuminazione di emergenza ad elevate prestazioni con kit di lenti speciali in PMMA ad elevata trasparenza, sia per versione Lungaluce che Largaluce, in dotazione, per ottenere differenti dimensioni della superficie illuminata. Ogni lente prevede in dotazione una mascherina estetica in policarbonato bianco con sistema di bloccaggio per varie tipologie di controsoffitto. Led ad alta efficienza, corpo con dissipatore integrato in Poliammide caricato a grafite.




Minimo impatto estetico ed elevate prestazioni con 10 anni di garanzia.

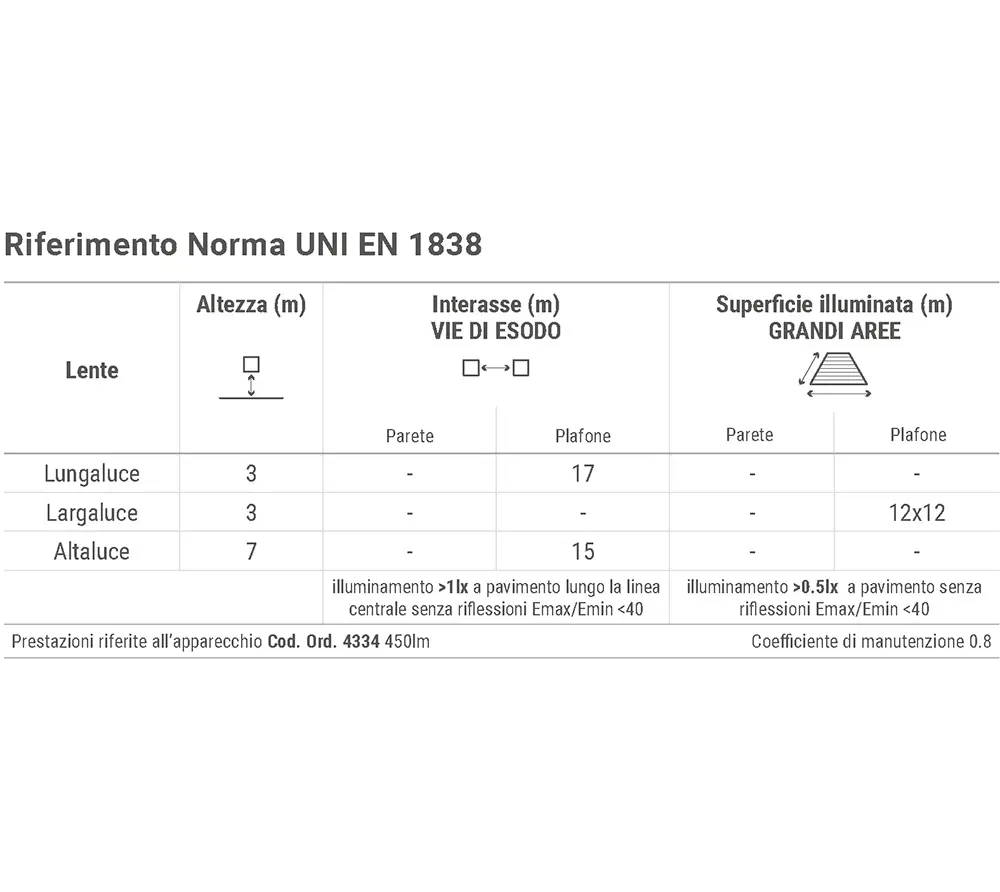

Un unico apparecchio, sia per vie di esodo fino a 12m, che per aree antipanico fino a 90mq. Autonomia regolabile da 1 a 8h.

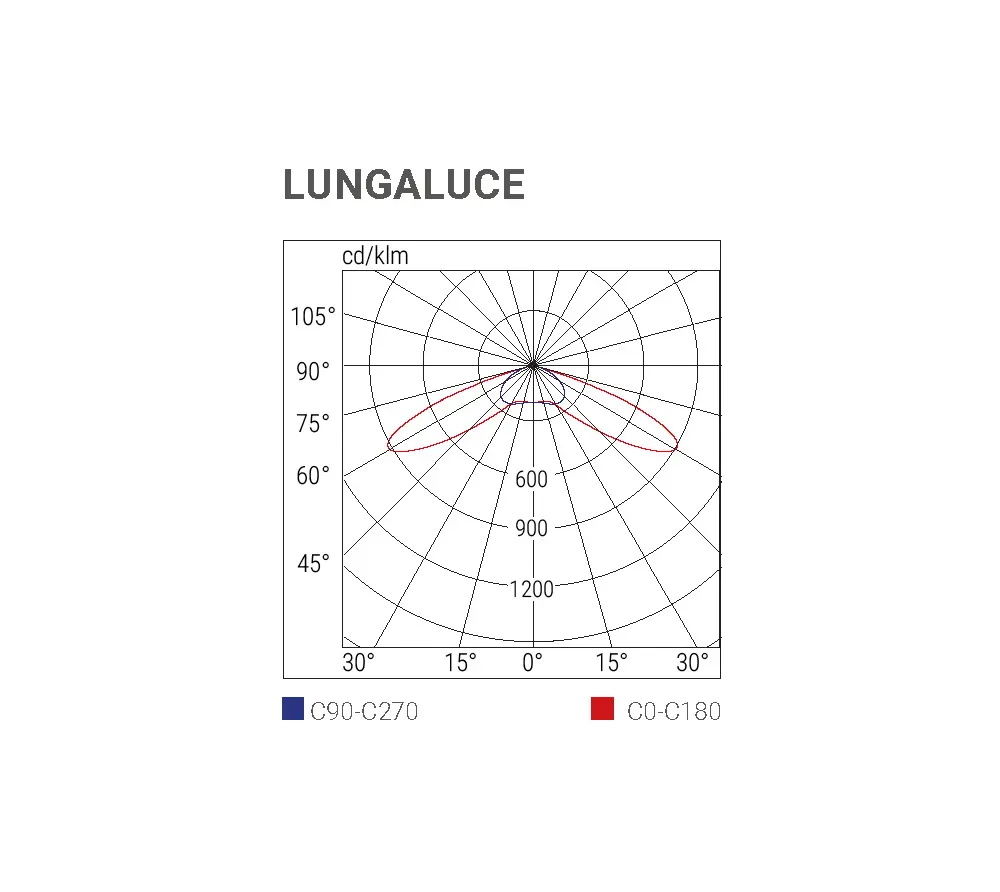

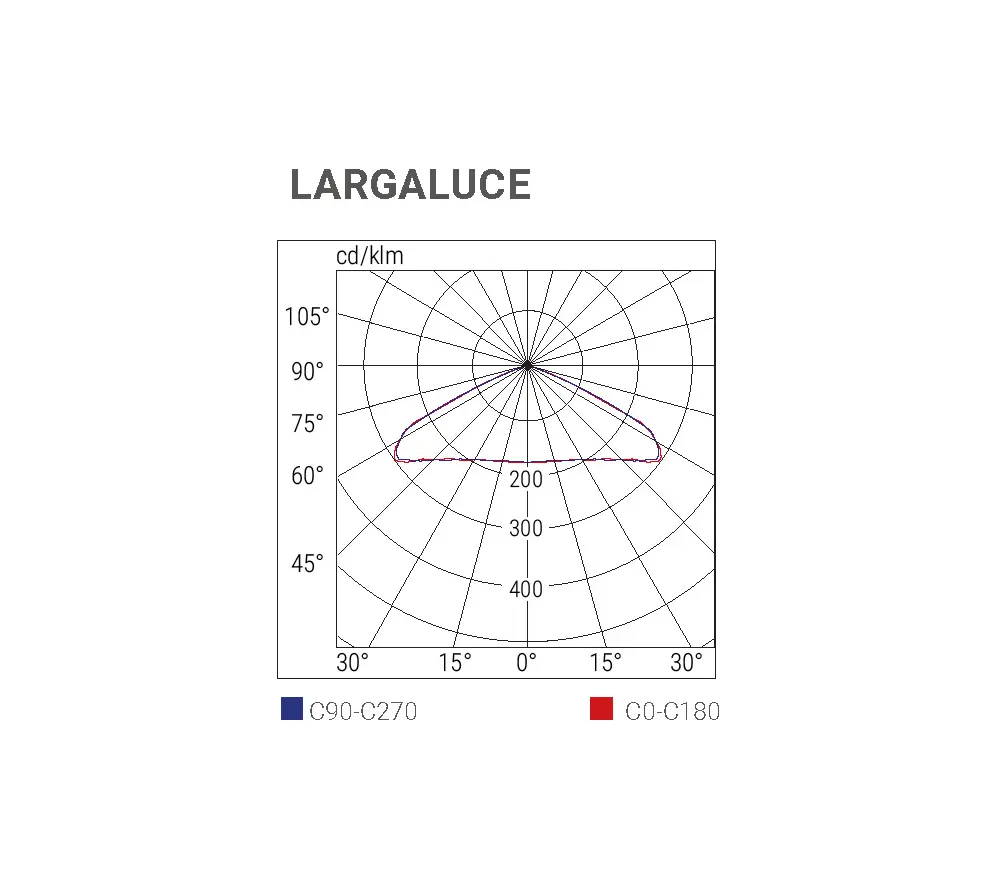

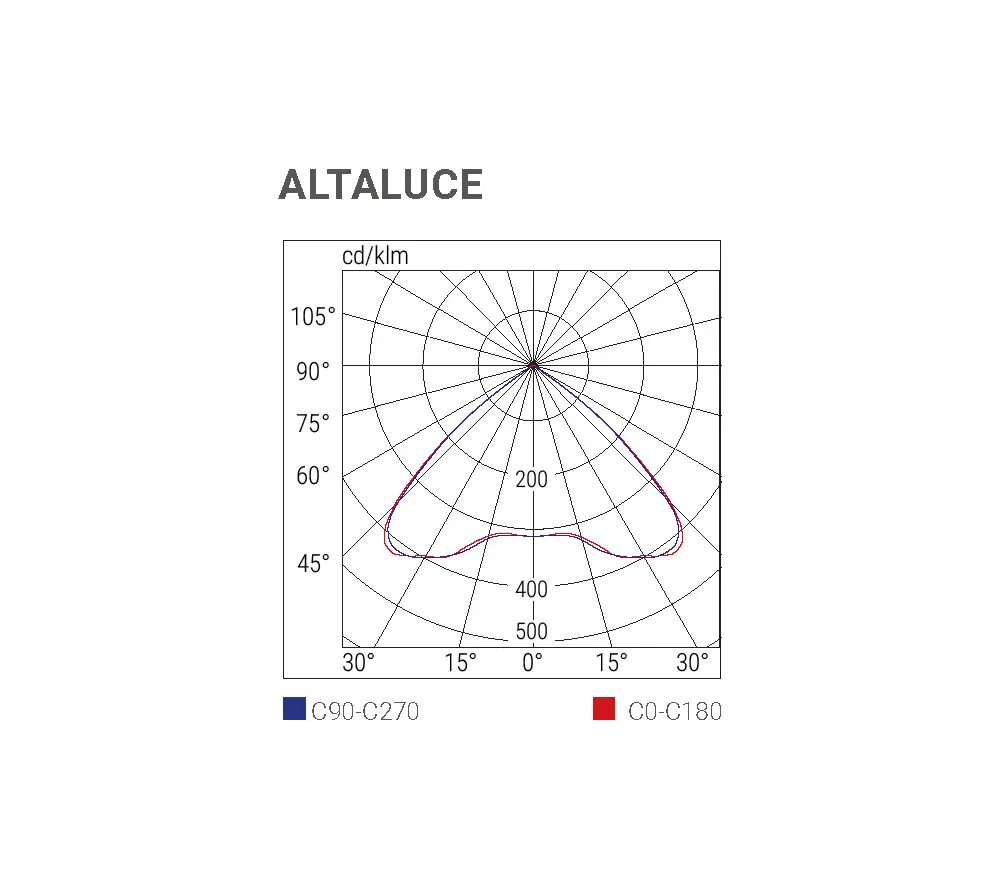

Tre lenti intercambiabili in dotazione per installazioni da 3 a 7m di altezza., con differenti fasci luminosi.

Molle per fissaggio rapido a controsoffitto.

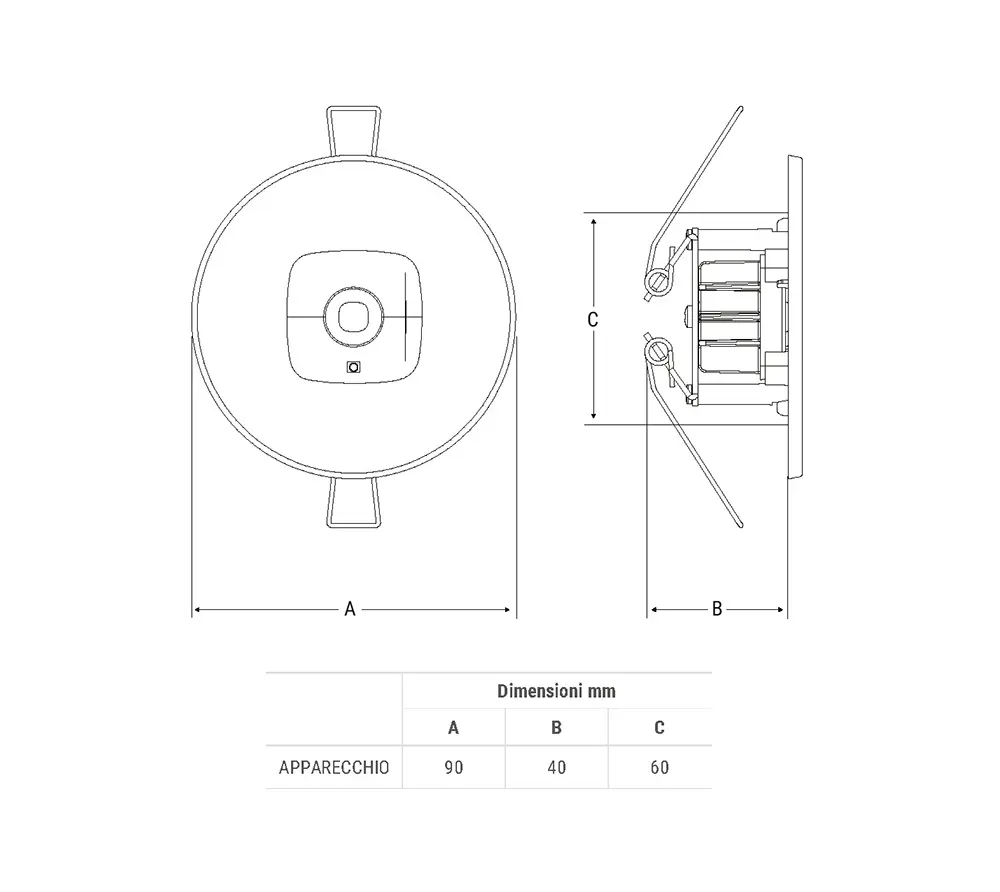

Foro  incasso ø60 mm.

Applicazioni: Terziario, uffici, cinema, hotel, scuole, negozi, centri commerciali, show room

Tempo di ricarica: 12h



Sistemi di emergenza TRADIZIONALI
TR
- Apparecchi autoalimentati TRADIZIONALI con sola diagnosi locale sulle batterie (Battery Control System).

Sistemi di emergenza AUTOTEST CENTRALIZZABILE
AT - OPT (OPTICOM) - Apparecchi autoalimentati AUTOTEST con programmazione di flusso ed autonomia (min 1h – max 8h) e test da APP dedicata. Gestione da APP del LOGBook impianto. Disponibili moduli espansione LG - LGFM - DALI per collegare gli apparecchi ai relativi sistemi CENTRALTEST.

Sistemi di emergenza CENTRALTEST
LG (LOGICA)
- Apparecchi autoalimentati AUTOTEST a diagnosi e controllo centralizzato con centrale LG. Anche in remoto con CLOUD NuBE.
LGFM - Apparecchi autoalimentati a diagnosi e controllo centralizzato RADIO con centrale LGFM. Anche in remoto con CLOUD NuBE.
DALI - Apparecchi autoalimentati a diagnosi e controllo centralizzato DALI integrando il modulo DALI opzionale.


Scopri i Sistemi di controllo Beghelli

Versions
SE,SA
Autonomy
1h, 1.5h, 2h, 3h, 8h
Installations
Recessed
Body
Policarbonato
Optic
Lenti in PMMA con elevata trasparenza
Control system
TR, AT
Light source
LED
Power supply (V)
230Vac ± 10%, 50÷60Hz
Compliance
EN 60598-1, EN 60598-2-2, EN 60598-2-22, UNI EN 1838, UNI 11222, EN 62034
Degree of protection
IP42
Room temperature
0°C +40°C
850Gradi
Indicates temperature resistance of the product, as verified using the glow wire test
IK07
Impact protection
IP42
Degree of protection against external factors
DoppioIsolamento
Apparatus with class II insulation level.
TenYears
Nube
BConnect
Available in: EU
Specifications
