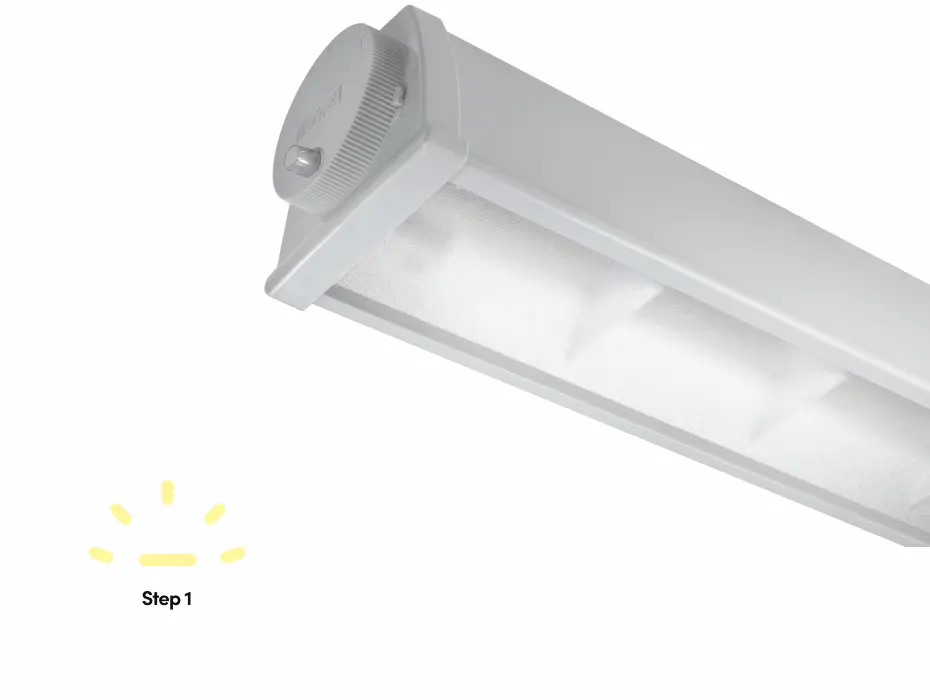

Acciaio LED
High-resistance LED ceiling lights.

Professional waterproof ceilinglight for LED lighting of tertiary and industrial environments. Made of high-quality technical materials and tempered glass and certified to IP66 and IK09, Acciaio LED is ideal for withstanding high stresses and harsh conditions in high-risk areas.

The innovative screw cap head allows for easy installation and connection with specific accessories such as the intelligent dimmer light sensor or the LED emergency module with integrated light source and inverter.

The main features of Acciao LED are:



  • Power supply adjustable in 4 luminous flux steps
  • High robustness for outdoor and industrial applications.
  • Optical scheme with independent cells
  • Maximum illuminance level, up to 20% higher than conventional optics, and beam control
High-resistance LED ceiling lights.

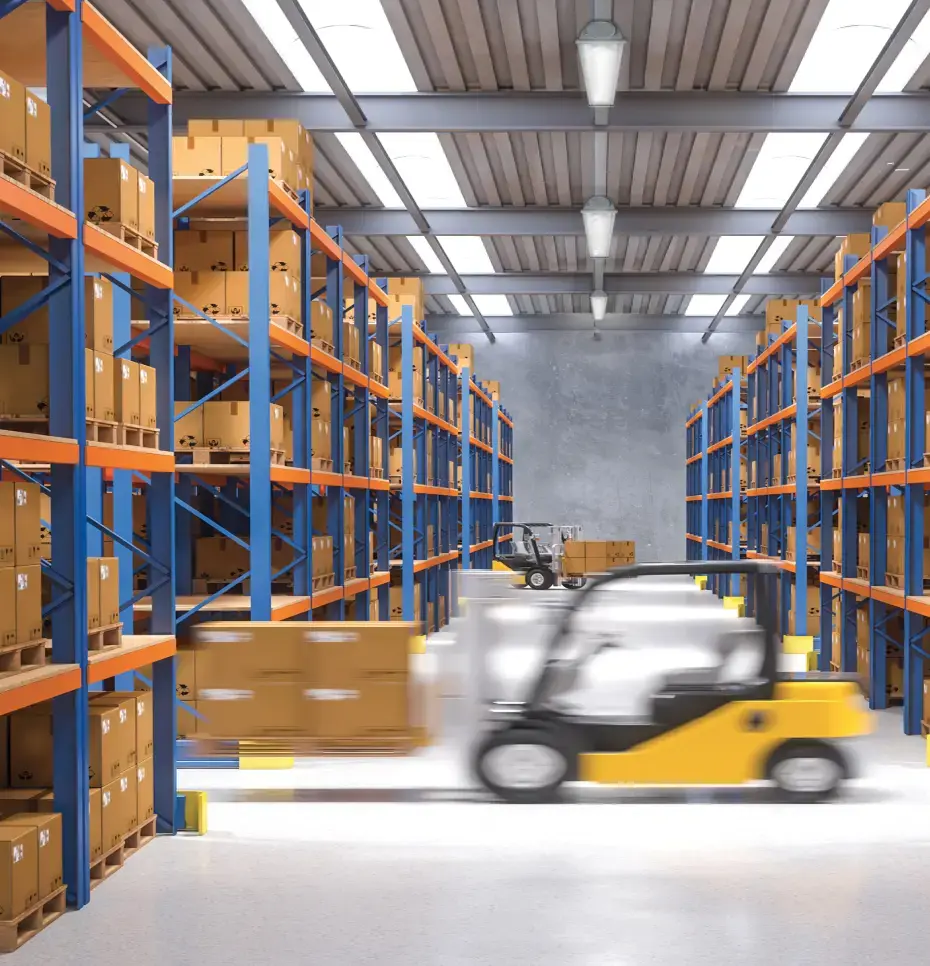

Magazzino illuminato da plafoniere stagne e un muletto che percorre i corridoi

Lighting solutions for extreme and demanding environments.

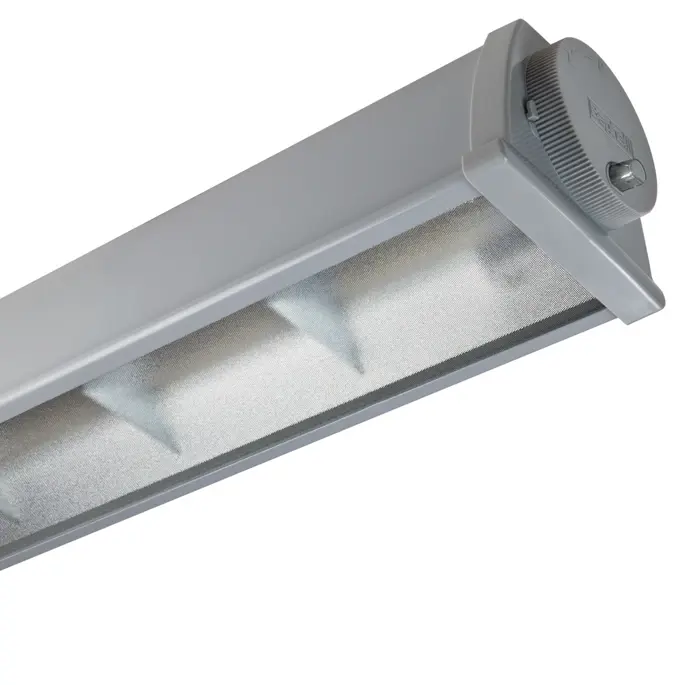

Acciaio LED is the ceiling light designed to meet the growing demand for advanced technological solutions capable of operating in harsh conditions and in high-risk areas. Thanks to the robustness of the steel body and the tempered glass screen, the device ensureshigh resistance both mechanically (IK09) and to aggressive chemical agents, guaranteeing reliability and durability.



The optical system is designed to reduce glare and distribute light evenly and efficiently thanks to the cellular reflector, which improves light distribution, and the high-transmission micro-prismatic glass, which ensures optimal visual comfort.


Resistant to mechanical vibrations and electromagnetic disturbances.


In the industrial field, Acciaio LED is particularly suitable for installation in environments with explosive atmospheres, characterised by gaseous alterations and the presence of combustible dust suspended in the air*.



The luminaire is also suitable for outdoor environments and, therefore, fordirect exposure to the weather, confirming its reliability and versatility in all areas.



*The 80W version already complies with ATEX 2014/34/EU for zones 02 and 22, relating to environments with the presence of combustible gas or dust. The other versions can achieve the same compliance through an optional accessory.



 Different power, maximum adaptability..

The luminaires are available with different W wattages in order to offer maximum flexibility and respond effectively to the needs of each environment. This variety makes it possible to adapt the lighting to contexts with different light intensity requirements, ensuring optimum performance even under difficult conditions.

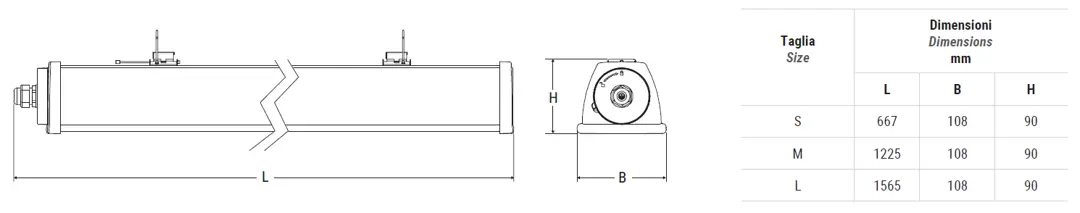

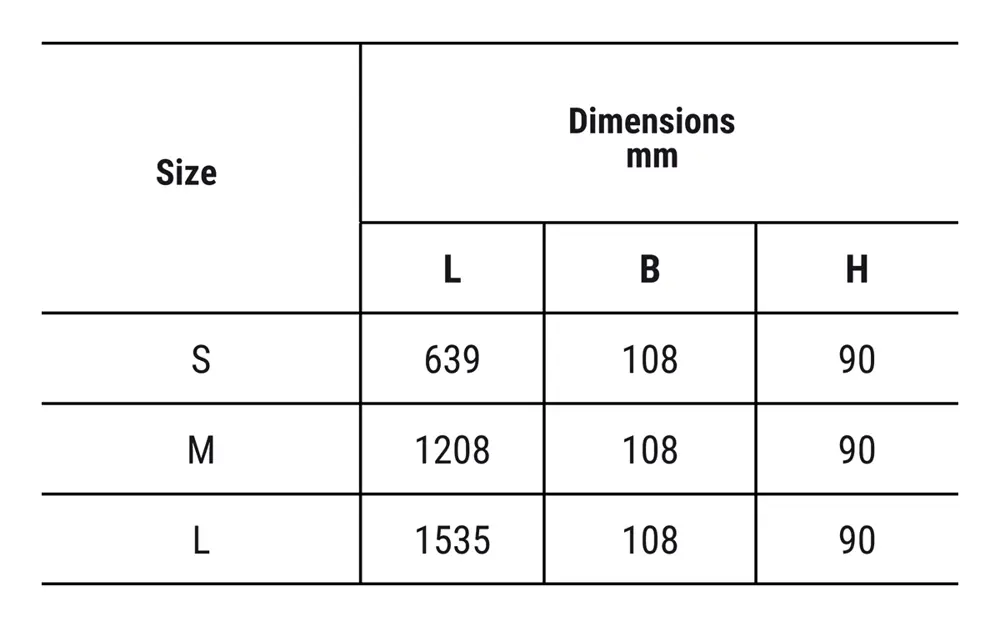

Tabella dimensioni e potenza delle differenti taglie di Acciaio LED



Maximum flexibility thanks to the adjustable feeding system. .

The watertight Acciaio LED ceiling light is equipped with a 4-step modifiable RD driver which, thanks to an electronic ballast with a switch for modulating the LED supply current, allows the luminous flux to be varied, guaranteeing maximum luminous efficiency and energy saving.

Optimised energy savings with four-step modulation of luminous flux.

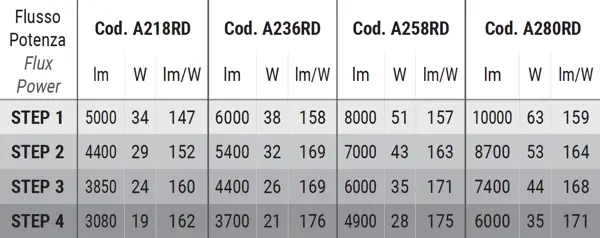

Refer to the code tables to see the specific luminous flux values corresponding to step positions 1/2/3/4 of the switch.

potenza Acciaio

4 step di illuminazione Acciaio LED
