Backlight Panel

Backlight Panel

High-efficiency backlight LED panel for homogeneous and long-lasting illumination.

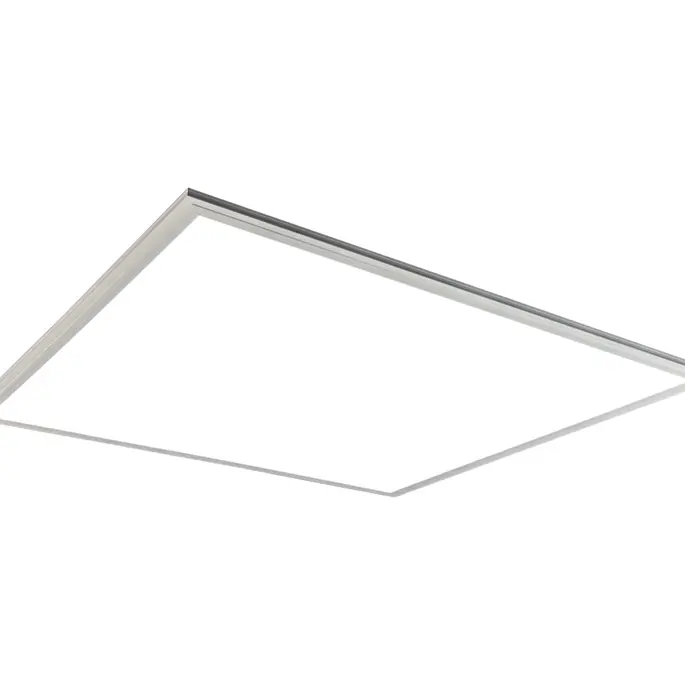

The Backlight Panel is an LED lighting fixture based on backlight technology, designed to guarantee high luminous efficiency and excellent light diffusion.

Built with a solid white painted aluminium housing and a UV-stabilised, self-extinguishing prismatic PMMA screen, it ensures flicker-free operation and high visual comfort in any work and commercial environment.

High-efficiency backlight LED panel for homogeneous and long-lasting illumination.
APPLICATIONS
  • Offices and Professional Workspaces  Guarantees comfortable and flicker-free lighting (UGR < 19 version), reducing visual fatigue during the use of terminals and screens.
  • Schools and Educational Institutions  Ensures a homogeneous and pleasant distribution of light in classrooms and transit areas, promoting attention and concentration.
  • Retail and Commercial Spaces  Enhances the retail environment with a clean and essential design, offering bright light for merchandise display.
  • Services Sector and Public Facilities  Offers a robust and efficient solution with minimised maintenance costs, thanks to the guaranteed lifespan of the LED modules.



TECHNICAL FEATURES

  • Glare Control  UGR < 19 / UGR < 22 (depending on the version) | Flicker Free.
  • LED Lifespan (L80​B20​ at 25°C)  > 50,000 hours.
  • Operating Temperature  -20°C to +40°C.
  • Materials  White painted aluminium housing, UV-stabilised self-extinguishing prismatic PMMA screen.
  • Protection Level & Impact Resistance  IP20 / IP40 | IK05 | Glow wire test 650°C.
  • Mounting Options  Recessed, ceiling-mounted, suspended.
  • Compliance & Standards  CE, UKCA, EN60598-1, EN60598-2-2, EN62471.




Statutory Consumer Warranty

All Beghelli products intended for consumers are covered by the statutory warranty provided for by European regulations.

More about
Specifications
High-efficiency backlight LED panel for homogeneous and long-lasting illumination. High-efficiency backlight LED panel for homogeneous and long-lasting illumination. High-efficiency backlight LED panel for homogeneous and long-lasting illumination.
Installation
High-efficiency backlight LED panel for homogeneous and long-lasting illumination.
Pendant with WIRE PaneLED suspension to be ordered separately
High-efficiency backlight LED panel for homogeneous and long-lasting illumination.
Emergency kit with Inverter LED (to be ordered separately); to comply with regulatory compliance, the Plug&Light Inverter must be installed complete with Protective Cable Gland Covers (supplied)
High-efficiency backlight LED panel for homogeneous and long-lasting illumination.
Recessed
Ceiling installation
High-efficiency backlight LED panel for homogeneous and long-lasting illumination.
PaneLED ceiling frame to be ordered separately
High-efficiency backlight LED panel for homogeneous and long-lasting illumination.
Plasterboard brackets M600 to be ordered separately
