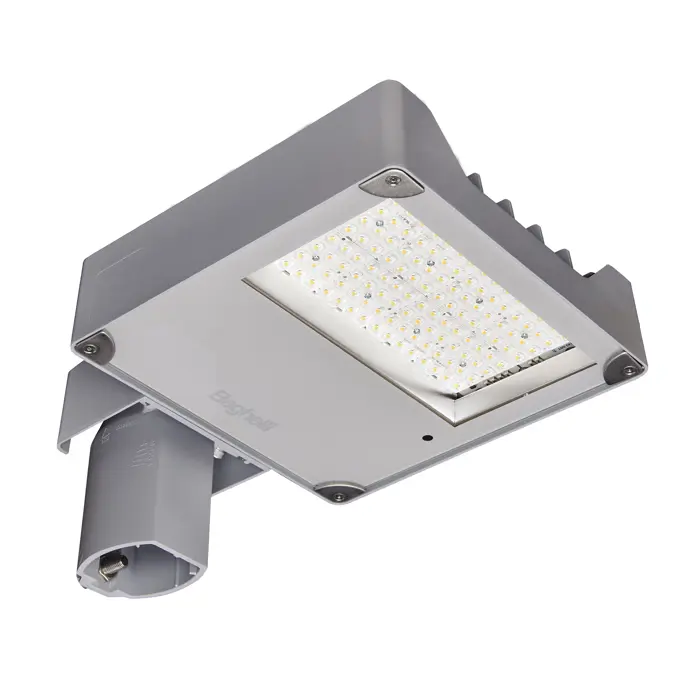

Strada Modula is Beghelli's modular LED solution engineered to meet the most demanding public and main-road lighting requirements.
Featuring a flexible and robust modular design, it consists of a die-cast aluminium housing and optical modules protected by a 5 mm thick, high-transparency tempered glass screen.
The surface of the housing is coated with a weather- and corrosion-resistant RAL 7040 grey polyester powder finish.
Thanks to the modular combination of its optical groups (available in asymmetric cycle-path, symmetric parking, medium-beam street, and high-uniformity street versions), Strada Modula allows customizable power levels and light distributions for optimal optical performance without energy waste.
Equipped with a high-performance thermal management system and electronic drivers designed for automatic flux reduction (MidNight function) or DALI control, it delivers outstanding operational reliability with an estimated LED lifespan exceeding 180,000 hours.
APPLICATIONS
- Urban and Extra-Urban Roads Lighting for high-speed arteries, roundabouts, junctions, and primary or secondary roadways.
- Cycle-Pedestrian Paths and Walkways Maximum visibility and safety for pedestrians and cyclists thanks to dedicated optics.
- Parking Lots and Staging Areas Smooth and uniform coverage for large commercial, industrial, and public car parks.
- Major Traffic Junctions and Interchanges Flexible configurations for optimal coverage of complex roadway layouts.
TECHNICAL FEATURES
- Power Options From 28W to 220W (depending on module configuration).
- Luminous Efficacy Up to 150 lm/W.
- Colour Temperatures 3000K (Warm white) | 4000K (Neutral white).
- Colour Rendering Index (CRI) > 70.
- LED Lifespan (L90B10 at 25°C) ≥ 180,000 hours.
- Operating Temperature -20°C to +40°C.
- Materials Die-cast aluminium body with RAL 7040 polyester powder coating | 5 mm tempered glass screen.
- Available Optics Asymmetric cycle-path, Symmetric parking, Medium-beam street, High-uniformity street.
- Dimming and Control Systems Automatic MidNight, DALI, compatible with emergency modules.
- Protection Level & Safety IP66 | IK09 | Glow wire test 960°C | Exempt from photobiological risk (EN 62471).
- Dimensions Length 397 mm | Width 271 mm | Height 155 mm (including adjustable bracket).
- Mounting Options Post-top or side-entry mounting with adjustable tilt (60 mm pole diameter).
- Compliance & Standards CE, UKCA, EN 60598-1, EN 60598-2-3, EN 62471, CAM Edilizia..
