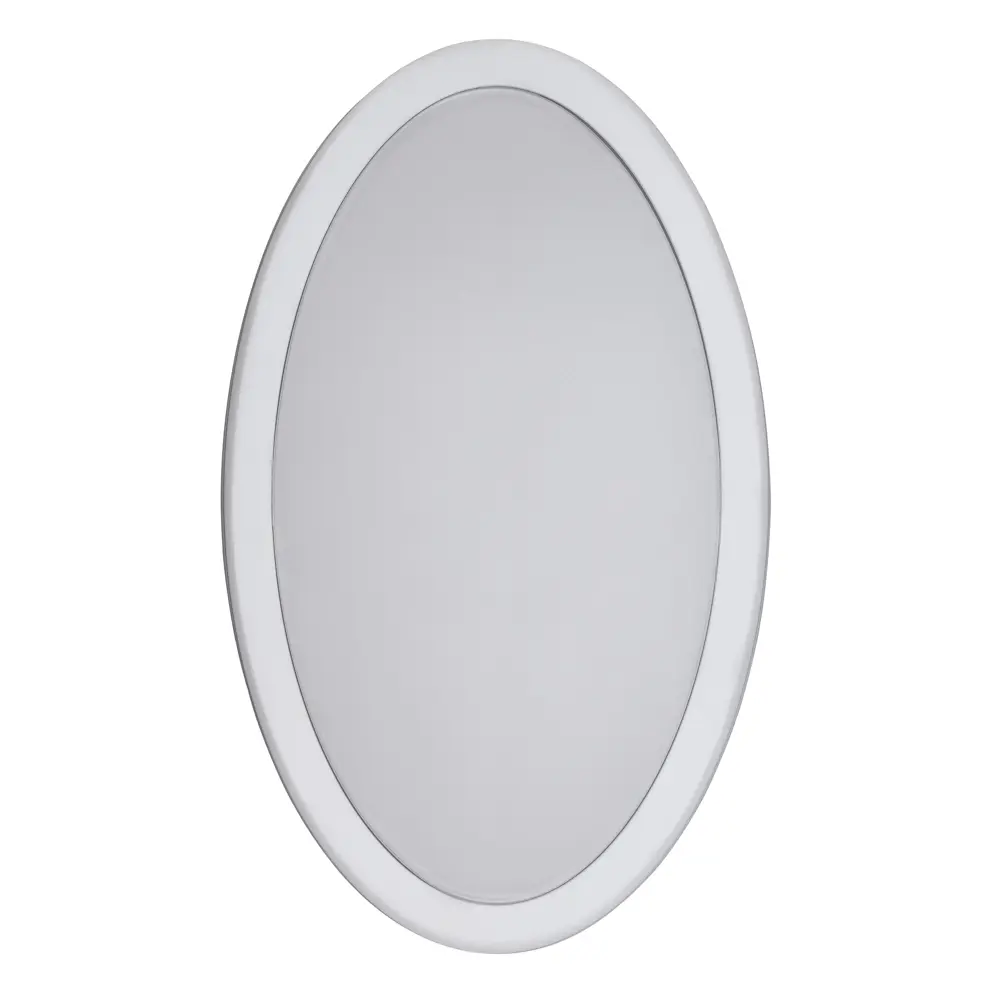

Oval Moon CCT
The Oval Moon CCT is a versatile and high-efficiency oval LED luminaire designed for wall and ceiling mounting in both indoor and outdoor environments.
Constructed with a housing and opal screen made of self-extinguishing, UV-stabilised polycarbonate, it guarantees an IP65 ingress protection rating against dust and water alongside IK08 impact resistance.
Featuring an integrated CCT switch within the IP65 junction box with rapid terminal block, it allows easy selection of the preferred colour temperature (3000K, 4000K, or 6500K).
The design also includes a quick-fit mounting bracket with release buttons for fast and hassle-free installation.
APPLICATIONS
- Residential & Civil Sector Ideal for lighting stairways, landings, hallways, entrances, and circulation areas.
- Outdoor & Architectural Spaces Perfect for terraces, balconies, covered arcades, corridors, and outdoor access points.
- Commercial & Service Sector Suitable for hospitality facilities, offices, and commercial spaces requiring adaptable, diffused illumination.
TECHNICAL FEATURES
- Power Options 16W, 26W.
- Luminous Efficacy 100 lm/W.
- Colour Temperature Options Selectable CCT (3000K - 4000K - 6500K).
- LED Lifespan (L80B20 at 25°C) > 50,000 hours.
- Operating Temperature -20°C to +40°C.
- Materials Self-extinguishing UV-stabilised polycarbonate housing and opal screen.
- Protection Level & Safety IP65 | IK08 | Glow wire test 850°C | Exempt from photobiological risk (EN 62471).
- Mounting Options Ceiling or wall mounting via quick-fit bracket and IP65 junction box.
Compliance & Standards CE, UKCA, EN 60598-1, EN 60598-2-1, EN 60598-2-22, EN 62471.
