Completa LED

The most complete range, suitable for all requirements

The new simple, effective emergency lighting device, suitable for all installation types.  An emergency product that is guaranteed to meet all requirements is now available, thanks to the new intelligent AT Opticom with LG and LGFM, which can also be used in complex environments in both the industrial and service sector. This highly versatile central-body device can be transformed by dismantling the back shell, enabling recess mounting. The signage is supplied as standard with pictograms, with a methacrylate cover elevating the degree of protection to IP66, adding a technical edge and improved aesthetics.

The performance levels offered are also impressive: the dual-reflection optical system maximises luminance and prevents glare, while the battery charging system uses minimal power, allowing for greater energy savings to be obtained with a reduced environmental impact.


Versions
SE,SA
Plus
Great versatility of use
Autonomy
1h, 3h
Installations
Ceiling , Wall , Recessed
Body
Polycarbonate, with RAL 9003
Lenses
Transparent plexiglass
Optic
Symmetrical, white
Screen
Methacrylate transparent PMMA
Equivalent power (W)
8, 11, 24, 36
Control system
TR
Light source
LED
Power supply (V)
230
Degree of protection
IP40, IP66
Room temperature
0°+40°C
Voltage (V)
230
Fixtures with LED light source
Appliance suitable for installations in schools, hospitals, office buildings, industrial facilities
Equipment suitable for safety signs under UNI EN 1838.
Emergency equipment with 1 hour of autonomy after 12 hours of charging
Indicates temperature resistance of the product, as verified using the glow wire test
Apparatus with class II insulation level.
Designed for energy efficiency, recyclability and reduction of parts subject to wear
Impact protection
Degree of protection against external factors
Degree of protection against external factors
Unit characterised by high resistance to UV radiation
Emergency equipment for permanent lighting
Emergency equipment for non-permanent lighting
Self-powered appliance without diagnostic function
Fixture complies with the European Community directives
Impact protection (according to EN 50102)
Available in: EU
Specifications
The most complete range, suitable for all requirements

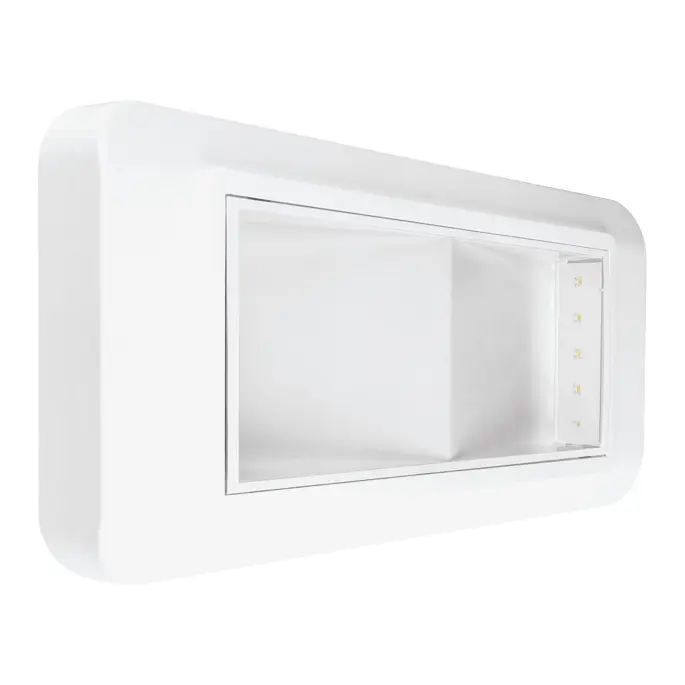

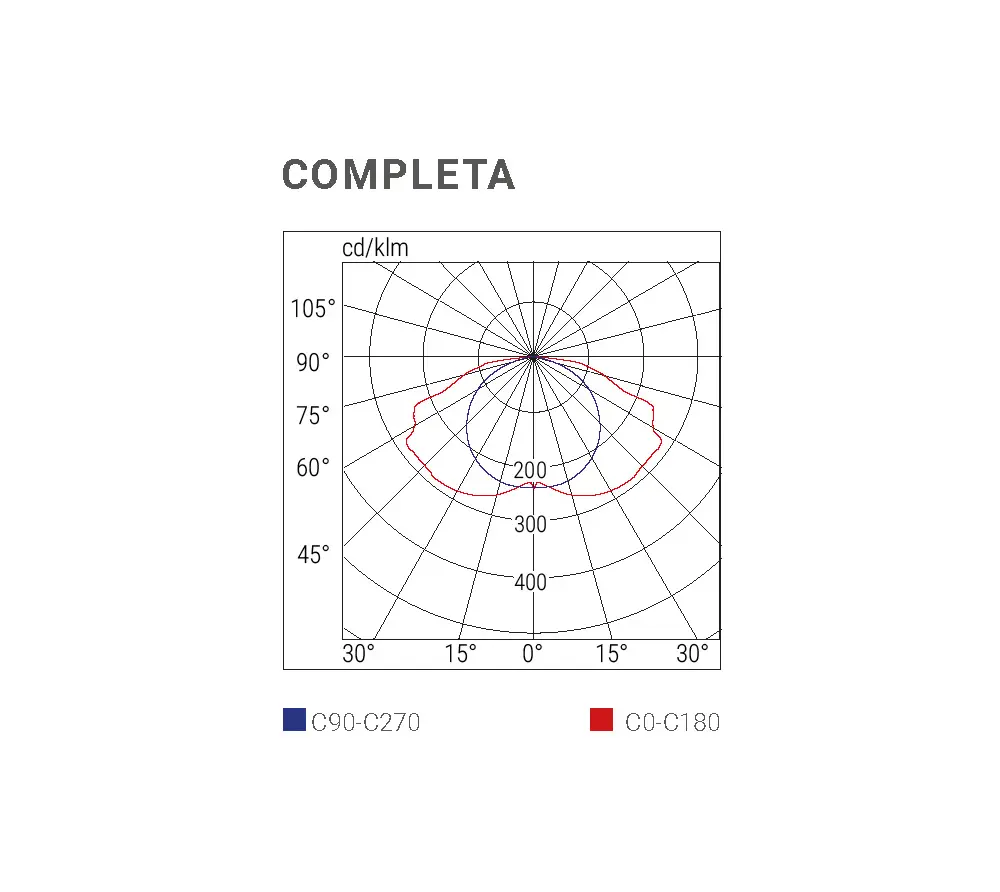

Emergency luminaire offering extreme flexibility of use. Thanks to a symmetrical and extremely uniform illumination, the Completa LED can be wall, ceiling, double-sided and recess mounted, without a specific direction. The polycarbonate housing contains a dual reflection optic which in turn integrates two series of ultra-efficient LEDS. The screen is made from methacrylate.
The outer housing has numerous pre-drilled inlets for direct assembly on the most widely-available types of connector blocks and recessed boxes. Double-sided screen version available, for wall and ceiling mounting. Furthermore, IP66 and IK07 grade protection can be achieved via the IP66 shell kit, to be ordered separately.
Details
Installazione - Installations
A parete
Wall
A soffitto
Ceiling

A incasso
Recessed
A incasso su controsoffitto o cartongesso.
A built-in false ceiling or plasterboard.
Schermo bandiera DX/SX e schermo bandiera basso da ordinare separatamente.
Flag screen DX / SX and flag down the screen to be ordered separately.
Schermo bandiera DS/DX e schermo bandiera basso da ordinare separatamente.
Flag screen DX / SX and flag down the screen to be ordered separately.
Staffa a parete per bandiera da ordinare separatamente.
Wall bracket for the flag to be ordered separately.
ADES SX DX BS in dotazione, schermi serigrafati DX/SX basso da ordinare separatamente.
ADES SX DX BS supplied screens screenprinted DX / SX below to order separately.
Guscio IP66
IP66 shell
Kit Guscio Ip66 Completa LED da ordinare separatamente.
Shell Complete Kit IP66 LED to be ordered separately.
Installazione - Installations
Staffa controsoffitto da ordinare separatamente.
Ceiling bracket to be ordered separately.
