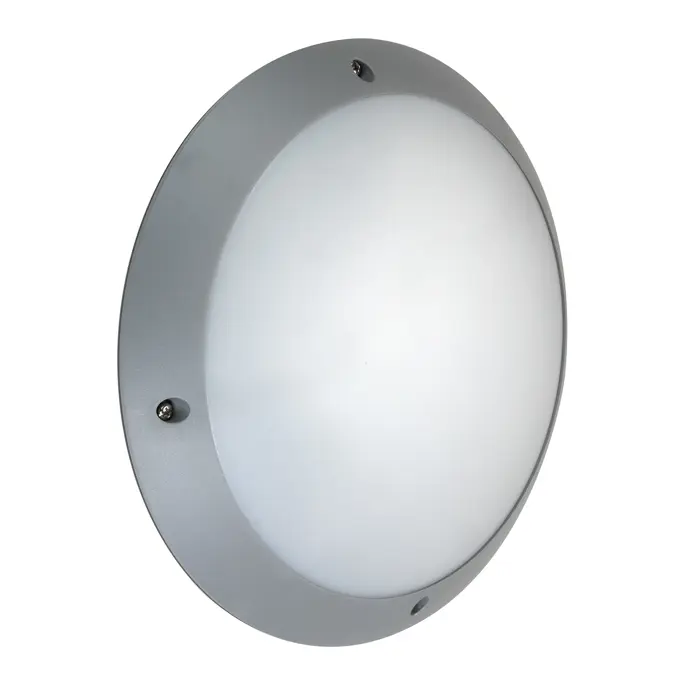

Lumax 65






Batteria al Titanio per una ricarica veloce ed un’elevata vita dell’apparecchio.  Alto flusso luminoso ad emissione diffusa.

Illuminazione ed illuminazione di emergenza integrata con molteplici sistemi di controllo, sia autoalimentati che centralizzati.

Disponibile versione con sensore di presenza microonde per l’attivazione automatica dell’illuminazione.

Applicazioni: Indoor, outdoor, terziario civile in condomini, luce scale, corridoi, negozi, alberghi, ristoranti

Tempo di ricarica: 12h



Sistemi di emergenza AUTOTEST
AT - Apparecchi autoalimentati AUTOTEST con diagnosi locale completa (batteria, sorgente luminosa, circuito).

Sistemi di emergenza CENTRALTEST
LG (LOGICA) - Apparecchi autoalimentati AUTOTEST a diagnosi e controllo centralizzato con centrale LG. Anche in remoto con CLOUD NuBE.
LGFM - Apparecchi autoalimentati a diagnosi e controllo centralizzato RADIO con centrale LGFM. Anche in remoto con CLOUD NuBE.

Sistemi di emergenza BATTERIA CENTRALIZZATA
LG230 - Apparecchi alimentati da batterie centralizzate 216Vdc.
LG24 - Apparecchi alimentati da batterie centralizzate 24VDC.
HT230 - Apparecchi alimentati da tensione di rete, da soccorritori e da sistema LG230.


Scopri i Sistemi di controllo Beghelli

Versions
SE,SA
Autonomy
1h, 3h, 8h
Installations
Ceiling , Wall
Body
Policarbonato, grigio RAL 9006
Screen
Policarbonato opale
Control system
AT, LG/LGFM, HT
Light source
LED
Power supply (V)
230Vac ± 10%, 50÷60Hz (Sistemi LG230, LG24, HT considerare i parametri della centrale utilizzata)
Compliance
EN 60598-1, EN 60598-2-22, UNI EN 1838, UNI 11222, EN 62034
Degree of protection
IP65
Room temperature
-20°C +45°C
850Gradi
Indicates temperature resistance of the product, as verified using the glow wire test
IP65
Degree of protection against factors
IK10
Impact protection (according to EN 50102)
Available in: EU
Specifications
