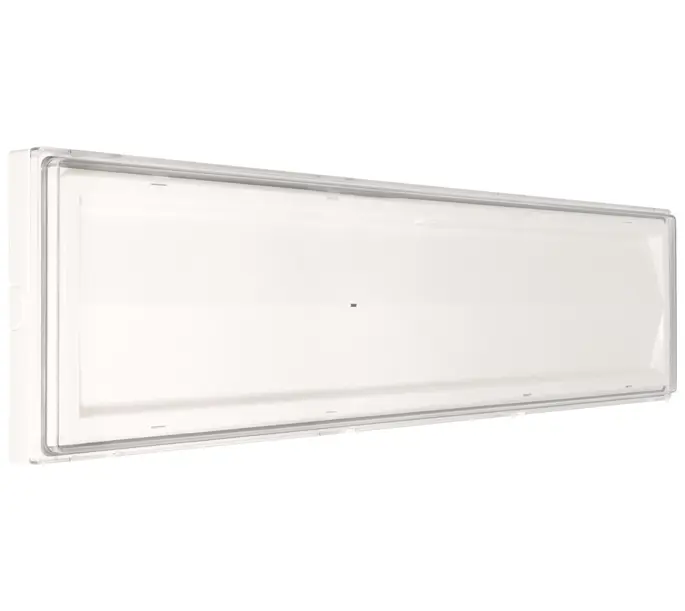

Ticinque LED

Lighting for large spaces

When luminous flux makes a difference Ticinque LED comes into play. Thanks to the extensive surface of the double reflection parabola that integrates two highly-effective LED series, the emission of “useful light” is at the top of its class offering the right level of illumination for largescale commercial environments. The body structure was also designed for installation in industrial environments. It can be connected both with smooth and corrugated tubes on the four sides of the device and offers IP65 protection.


Versions
SE,SA
Autonomy
1h, 2h, 3h, 8h
Installations
Ceiling , Wall
Body
Polycarbonate, with RAL 9003
Optic
Symmetrical, white
Screen
Transparent polycarbonate
Equivalent power (W)
18, 24
Control system
TR, AT
Light source
LED
Power supply (V)
230
Degree of protection
IP40, IP65
Room temperature
0°+40°C
Fixtures with LED light source
Appliance suitable for installations in schools, hospitals, office buildings, industrial facilities
Equipment suitable for hospital installations
Equipment suitable for safety signs under UNI EN 1838.
Emergency equipment with 1 hour of autonomy after 12 hours of charging
Indicates temperature resistance of the product, as verified using the glow wire test
Apparatus with class II insulation level.
Designed for energy efficiency, recyclability and reduction of parts subject to wear
Impact protection
Degree of protection against external factors
Degree of protection against factors
Unit characterised by high resistance to UV radiation
Emergency equipment for permanent lighting
Emergency equipment for non-permanent lighting
Self-powered fixture with local AUTOTEST diagnostic function
Self-powered appliance without diagnostic function
Fixture complies with the European Community directives
Available in: EU
Specifications
Lighting for large spaces
Device for emergency lighting designed for elevated luminous flux for installation in large commercial and industrial areas. The white polycarbonate body includes a cuneiform reflector equipped with two highly-effective LED series. The highly-transparent polycarbonate shield has been designed to guarantee IP65 level protection. The external shell has 4 pre-scored access points, both for the direct passage of the wiring (IP PLUG Connector) and for connection with the smooth or corrugated ø16 and ø20 tube (Invisible connector).
Details
Installazione - Installations
A soffitto
Ceiling
A parete
Wall
Segnaletica di sicurezza - Safety signs
Riflettore - Reflector
Riflettore cuneiforme a doppia riflessione con LED di segnalazione.
Wedge-shaped reflector to double reflection with LED.
