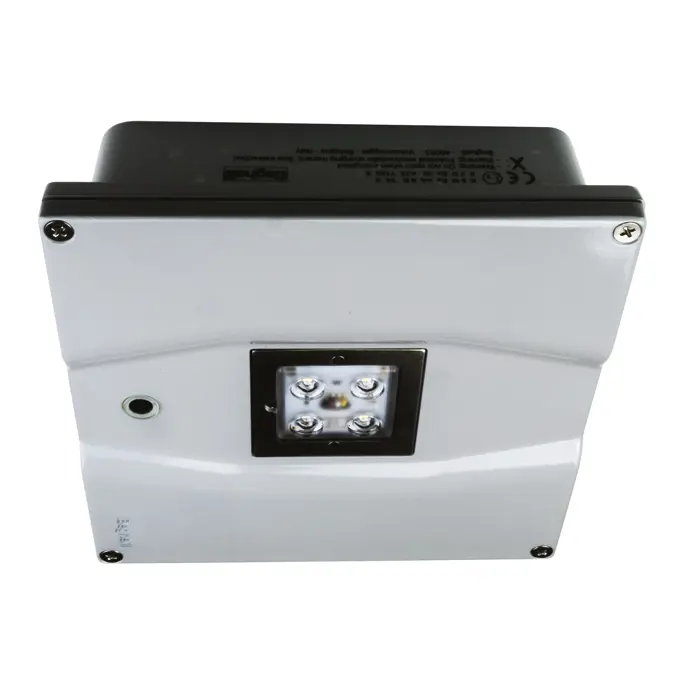

Lungalargaluce Extreme

Apparecchio per installazioni in ambienti ad alto rischio

Apparecchio di illuminazione di emergenza ad elevata resistenza meccanica (IK09), idoneo per applicazioni industriali particolarmente gravose in zone ad alto rischio. Le sue caratteristiche costruttive e progettuali lo rendono conforme alla direttiva ATEX 2014/34/UE per le zone 02 e 22. Il sistema ottico a lenti intercambiabili permette di modificare l’area di intervento dell’apparecchio rendendolo polivalente, da 3 a oltre 7m come altezza di installazione con fasci luminosi idonei sia per emergenza in zone ad alto rischio che per vie di esodo. Le prestazione illuminotecniche sono al vertice della categoria, grazie ad uno schema ottico lenticolare combinato con LED ad elevata efficienza, il flusso luminoso dell’apparecchio raggiunge i 1000lm.


Flusso luminoso fino a 3200lm, idonea in ambienti ad alto rischio dove è richiesta la conformità Atex.  Batteria al Titanio con ricarica veloce, 10 anni di vita utile e temperature di lavoro estreme.

Un unico apparecchio per illuminare grandi aree, vie di esodo e capannoni con altezze da 2  ad oltre 7m.

Cinque lenti in dotazione facilmente intercambiabili.

Predisposizione per cablaggio passante.

Applicazioni: Industriali in ambienti ad altro rischio con presenza di polveri e sostanze esplosive.

Tempo di ricarica: 12h


Sistemi di emergenza AUTOTEST
AT - Apparecchi autoalimentati AUTOTEST con diagnosi locale completa (batteria, sorgente luminosa, circuito).

Sistemi di emergenza AUTOTEST CENTRALIZZABILE
AT - OPT (OPTICOM) - Apparecchi autoalimentati AUTOTEST con programmazione di flusso ed autonomia (min 1h – max 8h) e test da APP dedicata. Gestione da APP del LOGBook impianto. Disponibili moduli espansione LG - LGFM - DALI per collegare gli apparecchi ai relativi sistemi CENTRALTEST.

Sistemi di emergenza CENTRALTEST
LG (LOGICA) - Apparecchi autoalimentati AUTOTEST a diagnosi e controllo centralizzato con centrale LG. Anche in remoto con CLOUD NuBE.
LGFM - Apparecchi autoalimentati a diagnosi e controllo centralizzato RADIO con centrale LGFM. Anche in remoto con CLOUD NuBE.
DALI - Apparecchi autoalimentati a diagnosi e controllo centralizzato DALI integrando il modulo DALI opzionale.

Sistemi di emergenza BATTERIA CENTRALIZZATA
LG230 - Apparecchi alimentati da batterie centralizzate 216Vdc.
LG24 - Apparecchi alimentati da batterie centralizzate 24VDC.
HT230 - Apparecchi alimentati da tensione di rete, da soccorritori e da sistema LG230.

Versions
SE,SA
Autonomy
1h, 1, 5h, 2h, 3h, 8h
Installations
Wall , Recessed
Body
Alluminio pressofuso, RAL 7040
Optic
Lenti in policarbonato trasparente
Equivalent power (W)
24, 24GL
Control system
AT, LG/LGFM, HT
Light source
LED
Power supply (V)
230Vac ± 10%, 50÷60Hz (Sistemi LG230, LG24, HT considerare i parametri della centrale utilizzata)
Compliance
EN 60598-1, EN 60598-2-2, EN 60598-2-22, EN 1838, UNI 11222, ATEX 2014/34/UE (classificazione: II 3 G Ex nA II B T135, II 3 D Ex tD A22 T85
Atex
Conformity with 94/9/EC for zones 02-22
Degree of protection
IP65
Room temperature
0°C +40°C Batt. Life, -20°C +45°C Batt. LTO
ATEX
Equipment intended for use in accordance with directive ATEX
850Gradi
Indicates temperature resistance of the product, as verified using the glow wire test
IK09
Impact protection
IP65
Degree of protection against factors
TenYears
Nube
BConnect
Available in: EU
