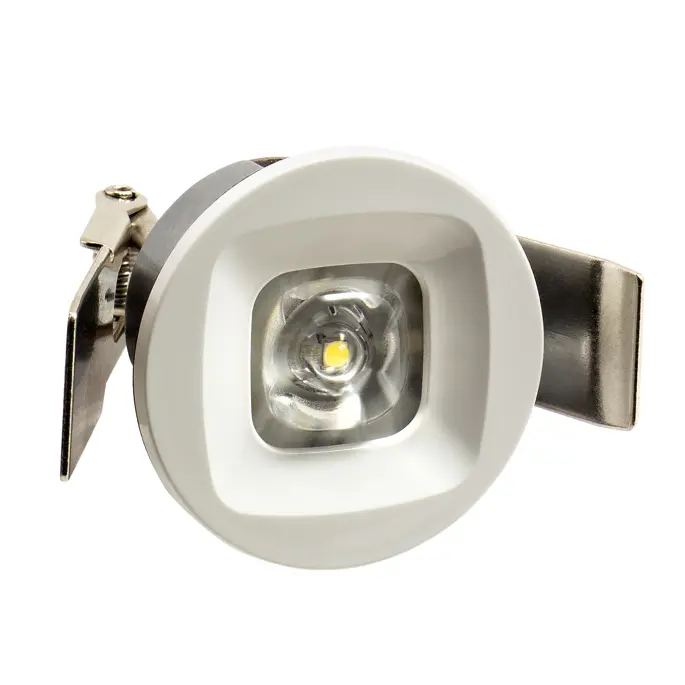

Micro Dot
Small spotlight for emergency lighting
A latest-generation spotlight with very small dimensions (less than 4 cm) and a performance and range suitable for the most complex projects, both for self-powered and centralised systems. The MICRO DOT project envisages various versions: recessed, surface-mounted, tube, suspension and the innovative Twin light system, to additionally connect an emergency LED strip on the same inverter.
Applications: Tertiary, offices, cinemas, hotels, schools , shops, shopping centres, showrooms, civil.
Installations: Recessed, ceiling, with ceiling tube, pendant and with dual output in the Power/Battery Module to power an additional LED strip to the spotlight.
Body: White polycarbonate
Lenses: PMMA
Charging time: 12h
Devices available with the following control systems:
TR - Traditional
LED battery check and autonomy adjustment possibility
LED battery check and autonomy adjustment possibility
AT - AutoTest
Local diagnosis (battery, source, circuit) and adjustable autonomy by acting on the circuit (1h-3h) or from App B.connect (1h-1.5h-2h-3h-8h)
Local diagnosis (battery, source, circuit) and adjustable autonomy by acting on the circuit (1h-3h) or from App B.connect (1h-1.5h-2h-3h-8h)
CT - Self-powered CentralTest
Native Cablecom centralised diagnostics for immediate connection to a CentralTest centre. Add-on modules for expansion to LG, LGFM and DALI
Native Cablecom centralised diagnostics for immediate connection to a CentralTest centre. Add-on modules for expansion to LG, LGFM and DALI
CTS - CentralSystem centralised power supply
Centralised batteries and diagnostics for refurbished luminaires, available in 230Vdc version, but also in 24Vac version, guaranteeing maximum system safety
HT - From 230V mains or rescuer / DALI system
Mains-powered luminaires, rescuers, LG230 systems, DALI control (HT-DALI)
Mains-powered luminaires, rescuers, LG230 systems, DALI control (HT-DALI)
